8 Inch Small Chimei Lcd Display 800 * 600 Resolution For Industrial

8 Inch Small Chimei Lcd Display 800 * 600 Resolution For Industrial
8 Inch Small Chimei Lcd Display 800 * 600 Resolution For Industrial

Large Image :  8 Inch Small Chimei Lcd Display 800 * 600 Resolution For Industrial

Product Details:
Place of Origin: Taiwan / Japan
Brand Name: Chimei
Certification: ISO9001
Model Number: LS080HT111
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days After Order Confirmation
Payment Terms: T/T
Supply Ability: 100 PCS PER DAY

8 Inch Small Chimei Lcd Display 800 * 600 Resolution For Industrial

Description
Active Area: 162*121.5 Mm Outline: 183*141 Mm
Display Colors: 262K ( 6-bit ) Contrast Ratio: 500:1 (Typ.)
Response Time: 15/35 (Typ.)(Tr/Td) Signal Interface: Paralle RGB ( 1 Ch, 6-bit), 40 Pins
High Light:

Small Chimei Lcd Display

,

Industrial Chimei Lcd Display

,

Chimei lcd flat panel

8 Inch Small Chimei Lcd Display 800 * 600 Resolution For Industrial



Quick Details:


Place of Origin: Taiwan, Japan.
Type: TFT
Outline Dimemsions: 182*141 mm
Backlight Type: White LED

Brand Name: Chimei
Display Size: 8.0 inch TFT
Brightness: 250 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)

Display Colors: 262K ( 6-bit)
Display & LCD Type: 800* (RGB )*600, SVGA
Signal Interface: Parallel RGB ( 1 ch, 6-bit), 40 pins
Viewing Direction: 6 O'clock.





Features:

• Wide viewing angle

• Fast response time

• Wide operating temperature

• Reversible scan function

• 6/8 bit convertible

• High color gamut (NTSC: 72%)



Application:

• Automotive display

• Industry application





Essential Specification:



Items Speciation
Screen Diagonal(inch) 10.4"
resolution 640xR.G.B.x480
Active Area 211.2x158.4
pixel Pitch(mm) 0.33x0.33
Pixel Arrangement R.G.B. Vertical Stripe
brightness 450nits
backlight CCFL
viewing angle 88/88/88/88
Display Mode TN, Normally White
Nominal Input Voltage VDD(volt) 3.3 typ.
Weight(gram) 470
Physical Size(mm) 225.5(W) ×176.3(H) ×9.5(D) mm
Electrical Interface TTL
Surface Treatment Anti-Glare, Hardness 3H
Color Depth 262,144
The most suitable view angle 12’clock
RoHS Compliance RoHS Compliance

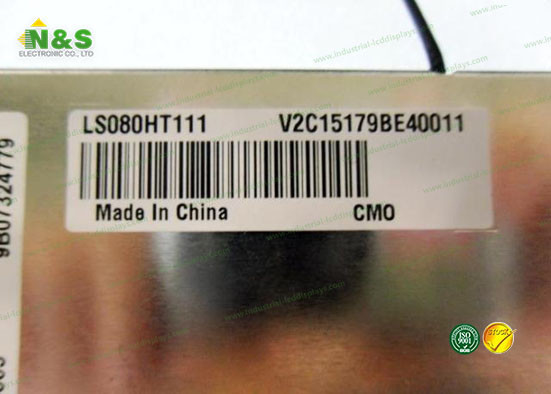

Details Picture for 8.0 Inch Chimei LS080HT111 LCD Display:



8 Inch Small Chimei Lcd Display 800 * 600 Resolution For Industrial 0



8 Inch Small Chimei Lcd Display 800 * 600 Resolution For Industrial 1
