Home ProductsChimei LCD Panel

Chimei 8.0 Inch A-Si TFT LCD Panel Hard Coating Normally White

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

Chimei 8.0 Inch A-Si TFT LCD Panel Hard Coating Normally White

Chimei 8.0 Inch A-Si TFT LCD Panel Hard Coating Normally White
Chimei 8.0 Inch A-Si TFT LCD Panel Hard Coating Normally White

Large Image :  Chimei 8.0 Inch A-Si TFT LCD Panel Hard Coating Normally White

Product Details:
Place of Origin: Japan
Brand Name: Chimei LCD Panel
Certification: ISO9001
Model Number: EE080NA-04C
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Paypal, Western Union, MoneyGram
Supply Ability: 100 PCS / DAY

Chimei 8.0 Inch A-Si TFT LCD Panel Hard Coating Normally White

Description
Brightness: 200 Cd/m² (Typ.) Contrast Ratio: 650:1 (Typ.)
Active Area: 309.399×173.952 Mm Frequency: 60Hz
Glass Depth: 0.50+0.50 Mm Surface: Hard Coating
High Light:

A-Si TFT LCD Panel

,

Hard Coating TFT LCD Panel

,

A-Si chimei lcd display

Chimei 8.0 Inch A-Si TFT LCD Panel Hard Coating Normally White



Description :



Panel Brand : CHIMEI INNOLUX
Panel Model : EE080NA-04C
Panel Type : a-Si TFT-LCD , CELL
Panel Size : 8.0 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : TN, Normally White, Transmissive
Active Area : 162.048×121.536 mm
Outline : 170.9×132.4 mm
Surface : Hard coating
Glass Depth : 0.50+0.50 mm
Transmissivity : 4.2% (Typ.)(with Polarizer)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 50%
Response Time : 6/14 (Typ.)(Tr/Td)
Viewing Angle : 75/75/75/75 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Signal Interface : LVDS (1 ch, 6/8-bit) , 40 pins
Input Voltage : 3.3/11.8/22/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)





Laptop lcd and led screen:from 4.5 inch to 18.4 inch





1.Size:8.9",10.1",10.2",11.1",11.6",12.1",13.1,13.3",14.0",14.1" ,  15.0",15.4",15.6",16.0",17.0",17.3",18.4"

2. Resolution:WSVGA,WXGA,WXGAHD,XGA,WXGA+,WXGA++

3. Backlight:LED,1CCFL,2CCFL



More Information For N&S electronic Co.,LTD:



1. Agent Brand:

* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds in China from 2010, you can get the most competitive price for real products.

2. Super After-Sale service:

N&S will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;

3.the best TFT LCD solution:

*more tft lcd model detail information including,size, resolution, brightness, operating temperature or life time etc.



Trade Terms:



1.     Payment terms: 100% by T/T when order confirmed

2.     Lead time: 2-5 working days according to the order quantity

3.     Sample lead time: within 3 working days after we get payment.

4.     The price based on FOB Shenzhen,we will offer best discount according to order quantity.

5.     Warranty:offer free spare parts within ONE year.

6.     Offer OEM service for batch orders,to print logo and design box.

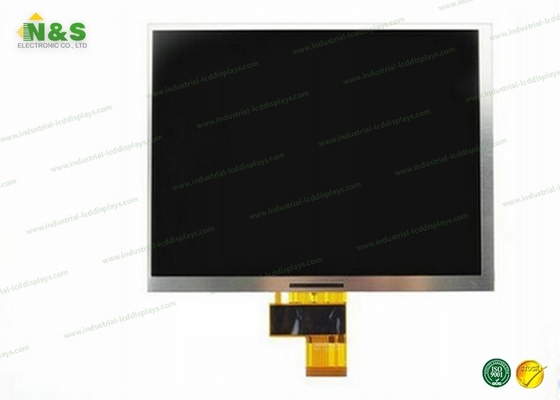

Pictures of  EE080NA-04C LCD Display:



Chimei 8.0 Inch A-Si TFT LCD Panel Hard Coating Normally White 0Chimei 8.0 Inch A-Si TFT LCD Panel Hard Coating Normally White 1Chimei 8.0 Inch A-Si TFT LCD Panel Hard Coating Normally White 2
