Product Details:
|
| Weight: | 285g (Typ.) | Surface: | Hard Coating (7H) |
|---|---|---|---|
| Pixel Density: | 167 PPI | Response Time: | 10/15 (Typ.)(Tr/Td) |
| Active Area: | 193.92×121.2 Mm (H×V) | Brightness: | 200 Cd/m² (Typ.) |
| High Light: | TFT Chimei LCD Panel,167 PPI Chimei LCD Panel,Chimei TFT LCD Panel |
||
ED090NA-01D 167 PPI TFT Chimei LCD Panel 9.0 Inch Hard Coating
Description :
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | ED090NA-01D |
| Panel Type : | a-Si TFT-LCD , Assembly |
| Panel Size : | 9.0 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Active Area : | 193.92×121.2 mm |
| Outline : | 235.12×156.4×7.84 mm |
| Surface : | Hard coating (7H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 70% |
| Viewing Angle : | 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 51 pins |
| Input Voltage : | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
Laptop lcd and led screen:from 4.5 inch to 18.4 inch
1.Size:8.9",10.1",10.2",11.1",11.6",12.1",13.1,13.3",14.0",14.1" , 15.0",15.4",15.6",16.0",17.0",17.3",18.4"
2. Resolution:WSVGA,WXGA,WXGAHD,XGA,WXGA+,WXGA++
3. Backlight:LED,1CCFL,2CCFL
Our company N&S:
We have a good reputation in the trading of electronic components and have built up a wide and stable relationship with agency and distributors of electronic components.
Our products have won praise from customers worldwide. We not only offer our own stock, but also help clients to search the parts in Chinese market.
We have implemented a strict and complete quality control system which ensures that all parts we offer are of good quality.
We have experienced workers and professional equipment to inspect the parts before shipment and always inform clients the true conditions of the parts.
We would appreciate the opportunity of serving your component needs. You will be pleased to do business with us for our best services and high quality components.
Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.

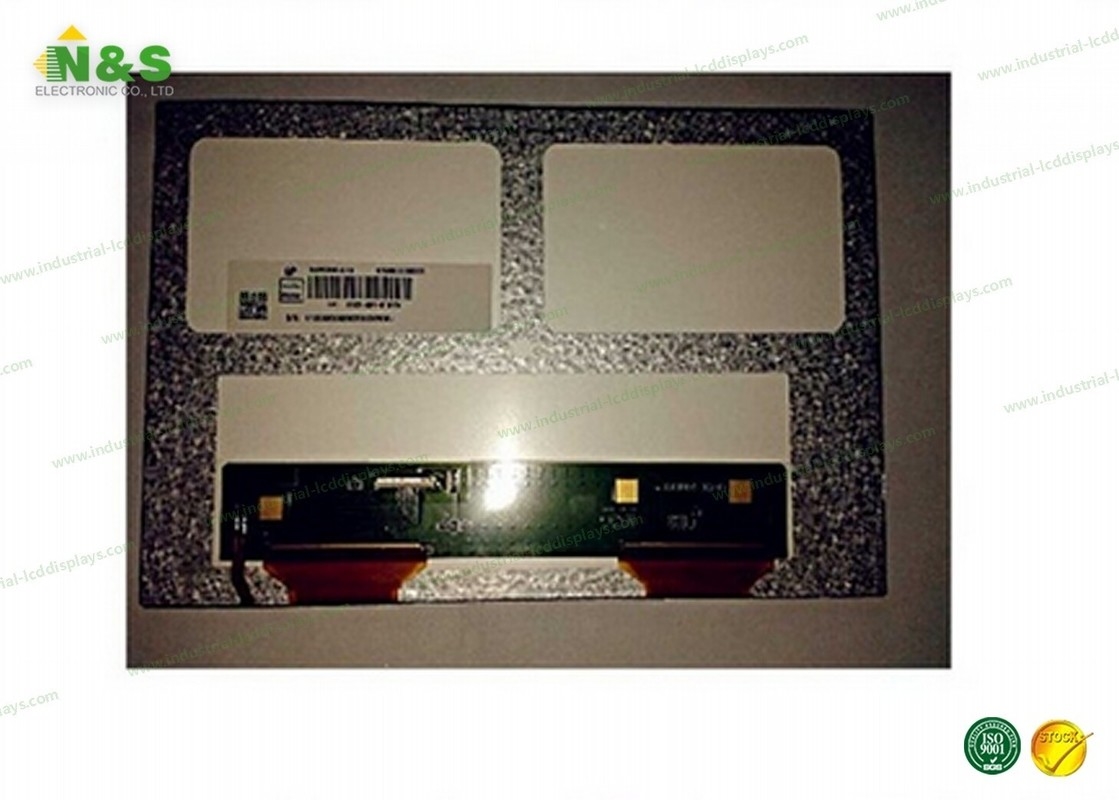

Pictures of ED090NA-01D LCD Display:
