Product Details:
|
| Panel Brand: | SHARP | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Display Mode: | TN, Normally White, | Active Area: | 304.1×228.1 Mm |
| Outline: | 326.5×253.5×11.8 Mm | Contrast Ratio: | 550:1 (Typ.) |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

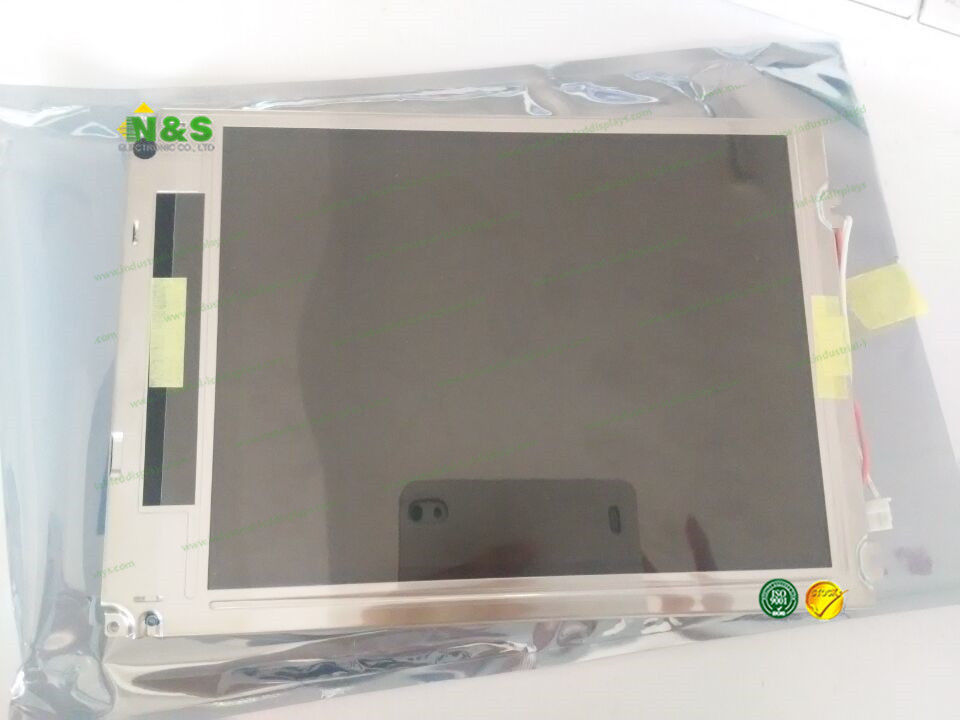

Sharp LQ150X1LG55 15.0 inch Normally White 304.1×228.1 mm Active Area for 60Hz
LQ150X1LG55 Detail
| Panel Model | LQ150X1LG55 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 304.1×228.1 mm |
| Outline | 326.5×253.5×11.8 mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 550:1 (Typ.) |
| Display Colors | 16.2M (6-bit + FRC) |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcs CCFL Without Driver |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage | 3.3V (Typ.) |
Packing & Delivery for our LCD Screen Panel Replacements:
| Dot Resolution | 1024(RGB)×768 (XGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.00Kgs (Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 307.4×231.3 mm (H×V) |
| Outline Dimension | 326.5×253.5 mm (H×V) |
| Outline Depth | 11.2/11.8 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM121VB1T02 | SHARP | 12.1" | 640×480 |
| LM121VB1T01 | SHARP | 12.1" | 640×480 |
| LM32015T | SHARP | 5.7" | 320×240 |
| LM8V302D | SHARP | 7.7" | 640×480 |
| LM104VC1T51 R | SHARP | 10.4" | 640×480 |
| LM104VC1T51 | SHARP | 10.4" | 640×480 |
| LM7M632R | SHARP | 6.5" | 640×240 |
| LM64P30R | SHARP | 9.4" | 640×480 |
| LM320195 | SHARP | 5.7" | 320×240 |
