Product Details:
|
| Screen Size: | 1.28 Inch | Contrast Ratio: | 18:1 (Typ.) (RF) |
|---|---|---|---|
| Viewing Angle: | 60/60/60/60 (Typ.)(CR≥2) | Work Mode: | Transflective |
| Signal Type: | 3-wire SPI , 10 Pins FPC | Operating Temp.: | -20 ~ 70 °C |
| Storage Temp.: | -30 ~ 80 °C | Touchscreen: | Without |
| High Light: | 1.28" Small LCM Panel,LS013B7DH03,Monochrome Sharp LCM Panel |
||

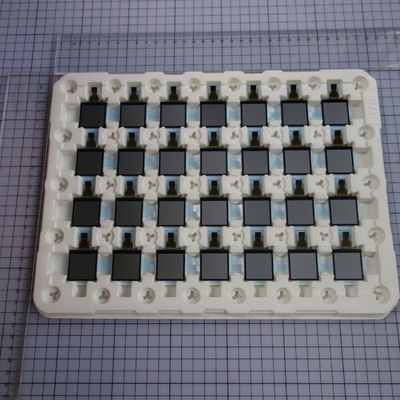

Monochrome LS013B7DH03 Sharp 128×128 1.28" Small LCM Panel
Description of Sharp LCD Panel
Now have 5 datasheets of LS013B7DH03 released by Sharp Corporation (hereafter called Sharp). According to datasheet with version of LCP-1112061 which was released out on 11 16 2012, LS013B7DH03 supports display 128×128 with aspect ratio of 1:1 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 23.04(W)×23.04(H) mm, outline size of 26.6(W)×30.3(H) mm, with surface treament of Hard coating (3H), net weight of 1.20g (Typ.).
Sharp LS013B7DH03 Optical Details
| Basic Information : | Luminance | - | Contrast Ratio | 18:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 10/20 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 60/60/60/60 (Typ.)(CR≥2)  |
Operating Mode | Transflective | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | Monochrome (1-bit) |
| Color Temperature | 6638K | White Uniformity | - | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | 0.2% (Typ.)(with Polarizer) |
| 3D Tech | - | Reflectance | 14/18% (Min./Typ.) |
Sharp LS013B7DH03 Mechanical Details
| Pixel Features : | Number of Pixel | 128×128 | Arrangement | Rectangle |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.18×0.18 mm | Pixel Pitch(W×H) | 0.18×0.18 mm [141PPI] | |
| Physical Size : | Active Viewing | 23.04(W)×23.04(H) mm | Overall Dim. | 26.6(W)×30.3(H) mm |
| Bezel Opening | - | Overall Depth | 0.746 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 1:1 | Shape Style | ||
| Other Detail : | Mass | 1.20g (Typ.) | Surface |
Hard coating (3H) |
We also have other industrial LCD panels, pls contact to us for the further information
| LQ156Z1JW01 | SHARP | 15.6" |
| LQ133T1JW14B | SHARP | 13.3" |
| LQ047K3SX04 | SHARP | 4.7" |
| LS024Q8UC92 | SHARP | 2.4" |
| LQ156D1JX02 | SHARP | 15.6" |
| LQ156Z1JW01 | SHARP | 15.6" |
| LQ133T1JW14B | SHARP | 13.3" |
| LQ047K3SX04 | SHARP | 4.7" |
| LS024Q8UC92 | SHARP | 2.4" |
Application Of Sharp LCD Panel LS013B7DH03
1. Tablet PC
2. Intelligent Display
3. Commercial Display
4. Medical Display
