Untouchability 12.1 Inch LQ121K1LG52 400Cd/M² Sharp Panel

Untouchability 12.1 Inch LQ121K1LG52 400Cd/M² Sharp Panel
Untouchability 12.1 Inch LQ121K1LG52 400Cd/M² Sharp Panel

Large Image :  Untouchability 12.1 Inch LQ121K1LG52 400Cd/M² Sharp Panel

Product Details:
Place of Origin: Korea
Brand Name: Sharp
Model Number: LQ121K1LG52
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

Untouchability 12.1 Inch LQ121K1LG52 400Cd/M² Sharp Panel

Description
Diagonal Size: 12.1inch Luminance: 400 Cd/m² (Typ.)
Operating Temperature: -30 ~ 80 °C Storage Temperature: -30 ~ 80 °C
Viewing Angle: 80/80/65/80 (Typ.)(CR≥10) Light Source: WLED , 50K Hours , With LED Driver
High Light:

400Cd/M² Sharp Panel

,

LQ121K1LG52

,

Untouchability 12.1 Inch Sharp Panel

Untouchability 12.1 Inch LQ121K1LG52 400Cd/M² Sharp Panel



Description of Sharp LCD Panel

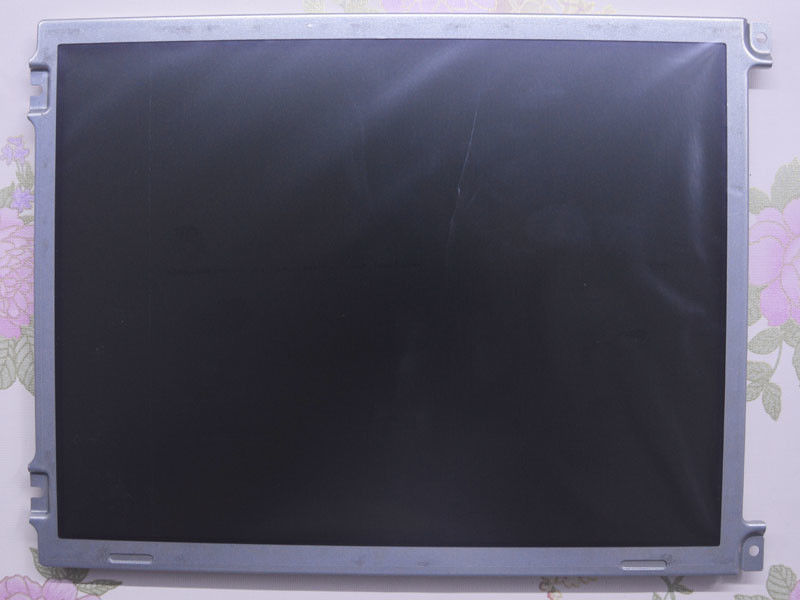

LQ121K1LG52 is a 12.1 inch diagonal a-Si TFT-LCD display screen product from Sharp, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet LD-22Z02G which was released out on 6 7 2017, LQ121K1LG52 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe.



Sharp LQ121K1LG52 Mechanical Details

Pixel Features : Pixel Format 1280(RGB)×800 [WXGA] Dot Pitch 0.068×0.204 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.204×0.204 mm (H×V) [124PPI]
Mechanical Size : Display Area 261.12×163.2 mm (H×V) Bezel Area 264.3×167.2 mm (H×V)
Outline Dim. 278×184 mm (H×V) Outline Depth 8.6/9.6 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:10 (H:V) Shape Style
Holes & Brackets : Side mounting holes (4-M2) on left, right bezel
Other Features : Weight 550g (Typ.) Surface Antiglare, Hard coating (3H)

Sharp LQ121K1LG52 Optical Details

Basic Information : Brightness 400 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive)
Viewing Angle 80/80/65/80 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction 6 o'clock Response Time 30 (Typ.)(Tr+Td) (ms)
Color Performance : Chromaticity Wx:0.310; Wy:0.335 Color Numbers 16.2M (6-bit + FRC)
Color Temperature 6593K White Uniformity 1.33 (Max.)(5 points) Untouchability 12.1 Inch LQ121K1LG52 400Cd/M² Sharp Panel 0
1931 Color Gamlt : NTSC Ratio 70% sRGB 92% coverage
Adobe RGB 71% coverage DCI-P3 73% coverage
Rec.2020 52% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





We also have other industrial LCD panels, pls contact to us for the further information





LM016LC1S07 SHARP 1.9"
LS050K3SX06A SHARP 5.0"
LK460D3HA10 SHARP 46"
LK315T3HB874 SHARP 31.5"
LK315T3HB873 SHARP 31.5"
LQ0DZC0156 SHARP 40"
LX080M1BB01 SHARP 8.0"
LS050K3SX09 SHARP 5.0"
LQ315D1EG02 SHARP 31.5"
JE0DZ1C0093 SHARP 60"
LK460D3FZ10 SHARP 46"
LQ0DZC0128 SHARP 31.5"





Application Of Sharp LCD Panel LQ121K1LG52​

1. Handheld & PDA

2. Industrial Display

3. Medical Dispaly

4. Commercial Display

5. Automotive Display





FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.



Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months (3) We will do our best to solve any possible problem for your after sale. Please contact with warranty for every item, depend on the different item.
us.Untouchability 12.1 Inch LQ121K1LG52 400Cd/M² Sharp Panel 1
