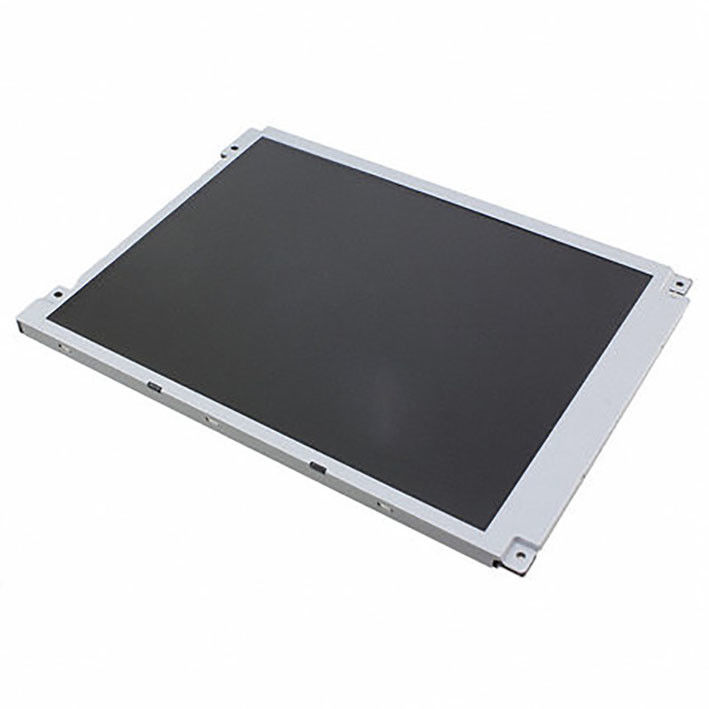

LQ104V1DG81 Sharp Lcd Replacement Screen 10.4" LCM 640×480 Industrial

LQ104V1DG81 Sharp Lcd Replacement Screen 10.4" LCM 640×480 Industrial
LQ104V1DG81 Sharp Lcd Replacement Screen 10.4" LCM 640×480 Industrial

Large Image :  LQ104V1DG81 Sharp Lcd Replacement Screen 10.4" LCM 640×480 Industrial

Product Details:
Place of Origin: korea
Brand Name: Sharp
Model Number: LQ104V1DG81
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: pls contact us
Packaging Details: standard Packaging
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 200

LQ104V1DG81 Sharp Lcd Replacement Screen 10.4" LCM 640×480 Industrial

Description
Panel Brand: Sharp Panel Model: LQ104V1DG81
Panel Size: 10.4" Panel Type: A-Si TFT-LCD , LCM
Resolution: 640(RGB)×480, VGA, 76PPI Touch Screen: Without
High Light:

LQ104V1DG81

,

10.4" Sharp Lcd Replacement Screen

,

640×480 Sharp Lcd Replacement Screen

LQ104V1DG81 Sharp Lcd Replacement Screen 10.4" LCM 640×480 Industrial

Sharp LQ104V1DG81 Mechanical Details

Pixel Features : Resolution 640(RGB)×480, VGA Dot Pitch(mm) 0.110×0.330 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.330×0.330 (H×V) [76PPI]
Mechanical Size : Active Area(mm) 211.2(H) × 158.4(V) Bezel Area(mm) 214.6(H) × 162.4(V)
Outline Dim.(mm) 246.5(H) × 179.3(V) Depth(mm) 13.0 (Max.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting : Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel
Other Spec : Weight 500g Treatment Antiglare, Hard coating (3H)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  •


Sharp LQ104V1DG81 Optical Details

Basic Information : Luminance(cd/m²) 450 (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive)
Viewing Angle 80/80/65/80 (Typ.)(CR≥10)  Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock Response(ms) 35 (Typ.)(Tr+Td)
Color Performance : White Coordinate X:0.300; Y:0.320 Display Colors 262K (6-bit)
Color Temperature 7351K White Uniformity 1.33 (Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 49% sRGB 68% coverage
Adobe RGB 51% coverage DCI-P3 51% coverage
Rec.2020 37% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

Below are our other LCD panels stock for your easy reference:



Panel Model Brand Size
LM016LC1S07 SHARP 1.9"
LS050K3SX06A SHARP 5.0"
LK460D3HA10 SHARP 46"
LK315T3HB874 SHARP 31.5"
LK315T3HB873 SHARP 31.5"
LQ0DZC0156 SHARP 40"
LQ133M1JW08A SHARP 13.3"
LK315T3HC1K SHARP 31.5"
LQ055T3SX04 SHARP 5.5"
LQ079L1SX06 SHARP 7.9"
LQ079L1SX04 SHARP 7.9"
LQ133M1JW08 SHARP 13.3"
LQ156D1JX02 SHARP 15.6"
LQ156Z1JW01 SHARP 15.6"
LQ133T1JW14B SHARP 13.3"
LQ047K3SX04 SHARP 4.7"
LS024Q8UC92 SHARP 2.4"
LK235D3HA0S SHARP 23.6"
LS055D1SX04 SHARP 5.5"

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

4. Carton Box.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

Our Service

Long lasting product cycle for continuity thru all phases of project rollouts and servicing

Competitive price for different brands hard disk.

Mass stock with the better price.

Multiple options.

Warranty service.

Better team to provide the before-sales, on-sale and after-sale service

Pls send us message if any hard disk needed.
