Product Details:
|
| Series: | LM046QB1S | Keywords Desc.: | SHARP 4.6" 320×240 FSTN-LCD Black/White (Positive) Transflective CCFL |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | FSTN-LCD Graphic Module |
| Application: | Industrial Application | Panel Type: | FSTN-LCD |
| Panel Composition: | LCM | Panel Size: | 4.6" |
| Resolution: | 320×240 | Form Factor: | Flat Rectangle Display |
| Active Area: | 94.39 (W) × 70.79 (H) Mm (A.A) | Viewing Area: | 97.8 (W) × 74.2 (H) Mm (V.A) |
| Outline Dimension: | 134 (W) × 100 (H) Mm | Polarizer: | Transflective |
| Color Mode: | Black/White (Positive) | Colors Amount: | Monochrome |
| Backlight Type: | CCFL | Interface Type: | Parallel Data |
| Interface Pins: | 20 Pins | Operating Temp.: | 0 ~ 40 C |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
SHARP 4.6 inch LM046QB1S02 320×240 FSTN-LCD Black/White (Positive) Transflective CCFL Parallel Data 20pins
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
LM046QB1S02 Main Parameters
| Panel Brand : | SHARP |
| Panel Model : | LM046QB1S02 |
| Panel Type : | FSTN-LCD , LCM |
| Panel Size : | 4.6 inch |
| Resolution : | 320×240 , QVGA |
| Display Mode : | STN, Black/White (Positive), Transflective |
| Active Area : | 94.39×70.79 mm |
| Outline : | 134×100 mm |
| Brightness : | 100 cd/m2 (Typ.) |
| Contrast Ratio : | 4:1 (Typ.)(Transmissive) 5:1 (Typ.)(Reflective) |
| Display Colors : | Monochrome |
| Response Time : | 180/270 (Typ.)(Tr/Td) |
| Viewing Angle : | 35/25/30/25 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel Data (4-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 4.6 inch |
| Dot Resolution : | 320×240 (QVGA) |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.295×0.295 mm (H×V) |
| Pixel Pitch : | 0.295×0.295 mm (H×V) |
| Weight : | 140g |
| Active Area : | 94.39×70.79 mm (H×V) |
| Bezel Area : | 97.8×74.2 mm (H×V) |
| Outline Dimension : | 134×100 mm (H×V) |
| Outline Depth : | 8.50 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

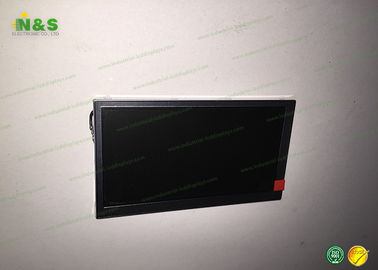

LM046QB1S02 Picture
