Product Details:
|
| Active Area: | 78.72×53.64 Mm | Outline: | 117.6×69.45 Mm |
|---|---|---|---|
| Surface: | Antiglare, Antireflection | Brightness: | 450 Cd/m² (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Antireflection LQ038Q5DR01 3.8 inch Sharp LCD Panel with 78.72×53.64 mm
LQ038Q5DR01 Main Parameters
| Panel Brand : | SHARP |
| Panel Model : | LQ038Q5DR01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.8 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 78.72×53.64 mm |
| Outline : | 117.6×69.45 mm |
| Surface : | Antiglare, Antireflection |
| Brightness : | 450 cd/m2 (Typ.) |
| Contrast Ratio : | 100:1 (Min.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL [8S |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.)(VCC) |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LM130SS1T579 | SHARP | 13.0" | 800×600 |
| LM081HB1T01B | SHARP | 8.1" | 640×240 |
| LM085YB1T01 | SHARP | 8.5" | 800×480 |
| LM089HB1T04 | SHARP | 8.9" | 640×240 |
| LM077VS1T01 | SHARP | 7.7" | 640×480 |
| LM64C081 | SHARP | 9.4" | 640×480 |
| Panel Size : | 3.8 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 106 PPI |
| Aspect Ratio : | 15:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.082×0.2235 mm (H×V) |
| Pixel Pitch : | 0.246×0.2235 mm (H×V) |
| Weight : | 135g (Max.) |
| Surface : | Antiglare, Antireflection |
| Active Area : | 78.72×53.64 mm (H×V) |
| Outline Dimension : | 117.6×69.45 mm (H×V) |
| Outline Depth : | 13.45 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packing & Delivery for our LCD Screen Panel Replacements:

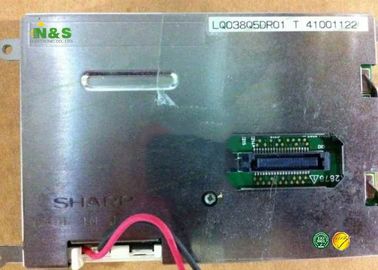

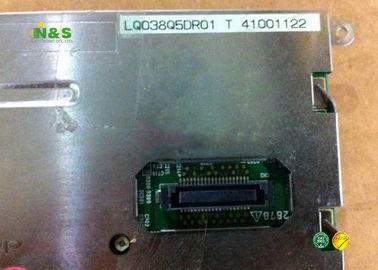

Details Picture for LQ038Q5DR01
