Product Details:
|
| Product Number: | LQ10D36A | Resolution: | 640×480 |
|---|---|---|---|
| C/R: | 500:1 | Brightness: | 200 |
| Backlight: | CCFL | Interface: | TTL |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

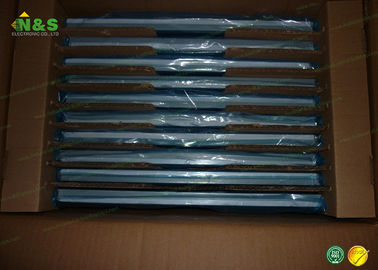

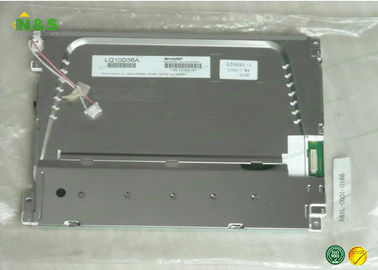

10.4'' 640*480 a-si TFT lcd screen LQ10D36A 500:1 200 Brightness
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Active Area : | 211.2×158.4 mm |
| Outline : | 246.5×179.4×11 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Panel Brand : | Sharp |
|---|---|
| Panel Model : | LQ10D36A |
| Panel Type : | a-Si TFT-LCD , LCM |
| Application : | |
| Operating Temperature : | -10 ~ 65 °C |
| Storage Temperature : | -30 ~ 70 °C |
| RoHS : | ROHS |
| Specific Feature : |
