Product Details:
|
Product Number: | LQ057V3DG01 | Resolution: | 640×480 |
---|---|---|---|
C/R: | 600:1 | Brightness: | 400 |
Backlight: | CCFL | Interface: | TTL |
High Light: | sharp lcd display panels,sharp lcd screen |

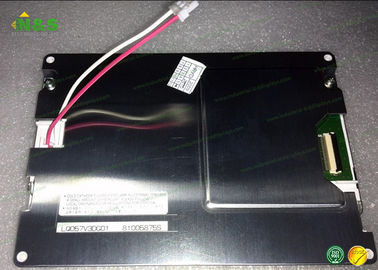

LQ057V3DG01 5.7 inch 640*480 LCD Display for Industrial Equipment by SHARP
Panel Model | Size | Resolution | cd/m2 | C/R |
LQ057V3DG01 | 5.7" | 640×480 | 400 | 600:1 |
PD057VT3 | 5.7" | 640×480 | 400 | 600:1 |
TCG057VG1CA-G00 | 5.7" | 640×480 | 350 | 500:1 |
PD057VT2 | 5.7" | 640×480 | 500 | 600:1 |
TCG057VG1AC-G00 | 5.7" | 640×480 | 350 | 400:1 |
TX14D14VM1BAA | 5.7" | 640×480 | 350 | 350:1 |
TX14D14VM1BBA | 5.7" | 640×480 | 280 | 350:1 |
TCG057VG1AD-G00 | 5.7" | 640×480 | 280 | 400:1 |
TCG057VG1CA-A00 | 5.7" | 640×480 | 350 | 500:1 |
Panel Brand : SHARP
Panel Model : LQ057V3DG01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 5.7 inch
Resolution : 640(RGB)×480 , VGA
Active Area : 115.2×86.4 mm
Outline : 144×104.6×13.5 mm
Surface : Antiglare
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 8/21 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/70 (Typ.)(CR≥5) (L/R/U/D)
Lamp Type : 1 pcs CCFL [8S6P: 8 Serial, 6 Parallel] Without Driver
Signal Interface : Parallel RGB (1 ch, 6-bit) , 33 pins
Input Voltage : 3.3V (Typ.)(VCC)
1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. As a result, our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
