Product Details:
|
| Product Number: | LM32K10 | Resolution: | 320×240 |
|---|---|---|---|
| C/R: | 10:1 | Backlight: | CCFL |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

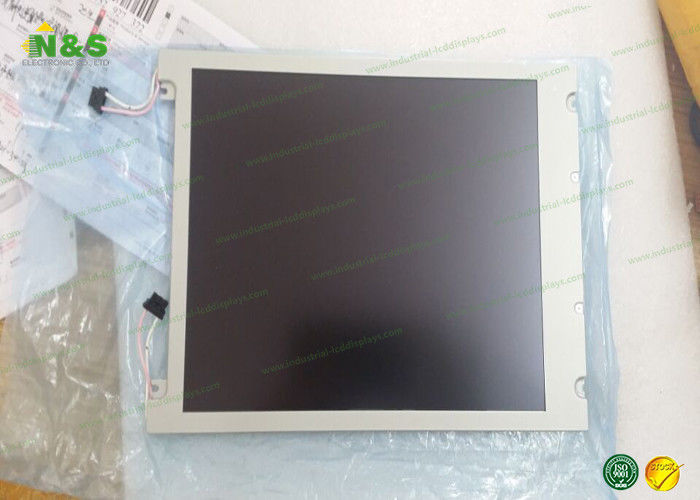

Sharp LCD Panel LM32K10 4.7" STN LCD Panel 320*240 (QVGA)
Panel Brand : SHARP
Panel Model : LM32K10
Panel Type : FSTN-LCD , LCM
Panel Size : 4.7 inch
Resolution : 320×240 , QVGA
Display Mode : STN, Black/White (Positive)
Active Area : 95.98×71.98 mm
Outline : 148×96 mm
Brightness : 50 cd/m² (Typ.)
Contrast Ratio : 10 : 1 (Typ.)
Display Colors : Monochrome
Response Time : 100/150 (Typ.)(Tr/Td)
Viewing Angle :
Signal Interface : Parallel Data (4-bit) , 12 pins
Input Voltage : 5.0V (Typ.)
| Signal Category : | Parallel Data | |||||
|---|---|---|---|---|---|---|
| Signal Class : | Parallel Data (4-bit) | |||||
| Input Voltage for Panel : | 5.0V (Typ.) | |||||
| Input Current for Panel : | 12.5mA (Typ.) | |||||
| Voltage for Display Signals : | 192/288mW (Typ./Max.) | |||||
| Interface Type : | Connector | |||||
