Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ104V1DC31 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
Antiglare LQ104V1DC31 Sharp LCD Panel 10.4 inch for Industrial Application
LQ104V1DC31 Detail
| Panel Brand : | SHARP |
| Panel Model : | LQ104V1DC31 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 265×195×11.2 mm |
| Surface : | Antiglare, Hard coating (3H), Antireflection |
| Brightness : | 0 cd/m² |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 20/40 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | No B/L |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 310g (Max.) |
| Surface : | Antiglare, Hard coating (3H), Antireflection |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 214.6×162.4 mm (H×V) |
| Outline Dimension : | 265×195 mm (H×V) |
| Outline Depth : | 11.2 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

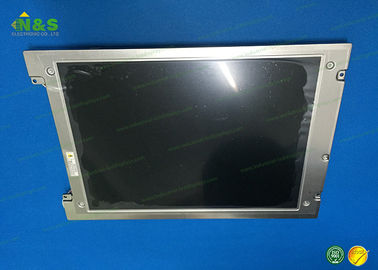

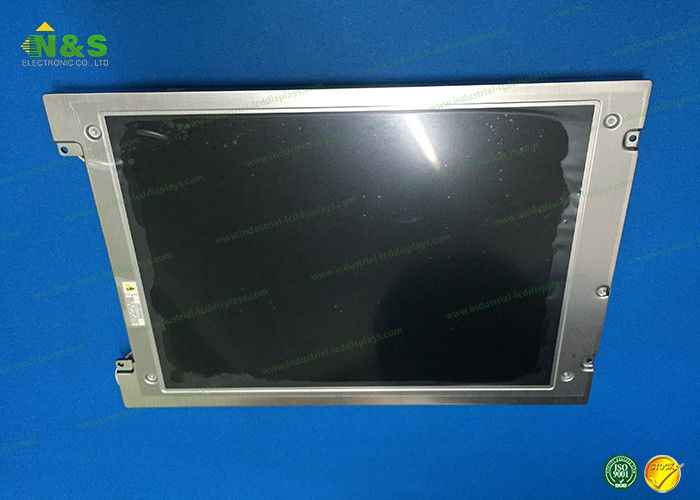

LQ104V1DC31 Picture
