Product Details:
|
Panel Brand: | Sharp | Panel Model: | LQ084S1DH01 |
---|---|---|---|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.4 Inch |
Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
High Light: | sharp lcd screen,sharp lcd flat screen |
LQ084S1DH01 8.4 inch Sharp LCD Panel LCM 800×600 70 150:1 262K CCFL TTL
LQ084S1DH01 Detail
Panel Brand : | SHARP |
Panel Model : | LQ084S1DH01 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 8.4 inch |
Resolution : | 800(RGB)×600 , SVGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 170.4×127.8 mm |
Outline : | 197×144.2 mm |
Surface : | Antiglare, Hard coating (2H), Reflection 5.0% (Max.) |
Brightness : | 70 cd/m² (Typ.) |
Contrast Ratio : | 150:1 (Min.) |
Display Colors : | 262K (6-bit) |
Response Time : | 15/30 (Typ.)(Tr/Td) |
Viewing Angle : | 45/45/10/30 (Typ.)(CR≥10) (L/R/U/D) |
Lamp Type : | 1 pcs CCFL Without Driver |
Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins |
Input Voltage : | 3.3V (Typ.)(VCC) |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
Panel Size : | 8.4 inch |
Dot Resolution : | 800(RGB)×600 (SVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 119 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.071×0.213 mm (H×V) |
Pixel Pitch : | 0.213×0.213 mm (H×V) |
Weight : | 225±10g |
Surface : | Antiglare, Hard coating (2H), Reflection 5.0% (Max.) |
Active Area : | 170.4×127.8 mm (H×V) |
Outline Dimension : | 197×144.2 mm (H×V) |
Outline Depth : | 7.0 (Typ.) mm |
Holes & Brackets : | Face mounting holes |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LM121VB1T02 | SHARP | 12.1" | 640×480 |
LM121VB1T01 | SHARP | 12.1" | 640×480 |
LM32015T | SHARP | 5.7" | 320×240 |
LM8V302D | SHARP | 7.7" | 640×480 |
LM104VC1T51 R | SHARP | 10.4" | 640×480 |
LM104VC1T51 | SHARP | 10.4" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

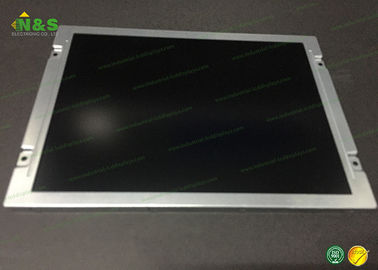

LQ084S1DH01 Picture
