Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ070T3GR01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
| Resolution: | 480(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Antireflection LQ070T3GR01 Sharp LCD Panel 7.0 inch with 154.08×87.05 mm
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
LQ070T3GR01 Specification
| Panel Brand : | SHARP |
| Panel Model : | LQ070T3GR01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 480(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 154.08×87.05 mm |
| Outline : | 166×102 mm |
| Surface : | Antiglare, Antireflection |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 60:1 (Min.) |
| Display Colors : | Full color |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | TFT Specific Analog RGB , 32 pins |
| Input Voltage : | 5/13/-10/-12/-17V (VSH/VGH/VGL/VCC/VSS) |
Packing & Delivery for our LCD Screen Panel Replacements:
| Panel Size : | 7.0 inch |
| Dot Resolution : | 480(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.107×0.372 mm (H×V) |
| Pixel Pitch : | 0.321×0.372 mm (H×V) |
| Weight : | 205g (Max.) |
| Surface : | Antiglare, Antireflection |
| Active Area : | 154.08×87.05 mm (H×V) |
| Outline Dimension : | 166×102 mm (H×V) |
| Outline Depth : | 7.6 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

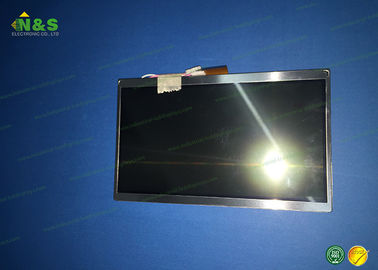

LQ070T3GR01 Picture
