Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ065T5CGQ2 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
| Resolution: | 400(RGB)×234 | Display Mode: | Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ065T5CGQ2 Sharp LCD Panel 6.5 inch LCM 400×234 635 CCFL Analog
LQ065T5CGQ2 Detail
| Panel Brand : | SHARP |
| Panel Model : | LQ065T5CGQ2 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.5 inch |
| Resolution : | 400(RGB)×234 |
| Display Mode : | Transmissive |
| Active Area : | 143.4×79.326 mm |
| Outline : | 156.8×91.5 mm |
| Surface : | |
| Brightness : | 635 cd/m² (Typ.) |
| Contrast Ratio : | |
| Display Colors : | |
| Response Time : | |
| Viewing Angle : | |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | Composite Video |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Our Company Strength in LCD Screen Sourcing:
| Panel Size : | 6.5 inch |
| Dot Resolution : | 400(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 71 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1195×0.339 mm (H×V) |
| Pixel Pitch : | 0.3585×0.339 mm (H×V) |
| Weight : | 290g |
| Active Area : | 143.4×79.326 mm (H×V) |
| Outline Dimension : | 156.8×91.5 mm (H×V) |
| Outline Depth : | 18.0 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

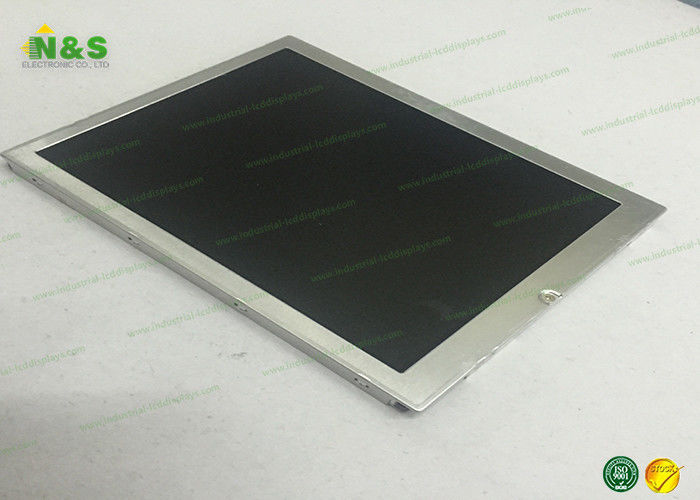

LQ065T5CGQ2 Picture
