Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ065T5AR07 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
| Resolution: | 400(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ065T5AR07 Normally White 6.5 inch Sharp LCD Panel 400×234 420 60:1 Full color Analog
LQ065T5AR07 Product Information
| Panel Brand : | SHARP |
| Panel Model : | LQ065T5AR07 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.5 inch |
| Resolution : | 400(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 143.4×79.326 mm |
| Outline : | 155×89.2 mm |
| Surface : | |
| Brightness : | 420 cd/m² (Typ.) |
| Contrast Ratio : | 60:1 (Min.) |
| Display Colors : | Full color |
| Response Time : | |
| Viewing Angle : | |
| Lamp Type : | |
| Signal Interface : | TFT Specific Analog RGB |
| Panel Size : | 6.5 inch |
| Dot Resolution : | 400(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 71 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1195×0.339 mm (H×V) |
| Pixel Pitch : | 0.3585×0.339 mm (H×V) |
| Active Area : | 143.4×79.326 mm (H×V) |
| Outline Dimension : | 155×89.2 mm (H×V) |
| Outline Depth : | 16.0 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

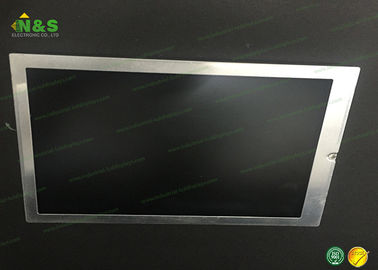

LQ065T5AR07 Picture
Contact Person: savvy,ren
Tel: +8613302928193
