Product Details:
|
Panel Brand: | Sharp | Panel Model: | LQ065T5AR06 |
---|---|---|---|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
Resolution: | 400(RGB)×234 | Display Mode: | Transmissive |
High Light: | sharp lcd screen,sharp lcd flat screen |
Full color LQ065T5AR06 Sharp LCD Panel 6.5 inch with 143.4×79.326 mm
LQ065T5AR06 Detail
Panel Brand : | SHARP |
Panel Model : | LQ065T5AR06 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 6.5 inch |
Resolution : | 400(RGB)×234 |
Display Mode : | Transmissive |
Active Area : | 143.4×79.326 mm |
Outline : | 155×89.2 mm |
Surface : | |
Brightness : | 420 cd/m² (Typ.) |
Contrast Ratio : | 250:1 (Typ.) |
Display Colors : | Full color |
Response Time : | |
Viewing Angle : | |
Lamp Type : | 1 pcs CCFL |
Signal Interface : | TFT Specific Analog RGB |
Panel Size : | 6.5 inch |
Dot Resolution : | 400(RGB)×234 |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 71 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.1195×0.339 mm (H×V) |
Pixel Pitch : | 0.3585×0.339 mm (H×V) |
Active Area : | 143.4×79.326 mm (H×V) |
Outline Dimension : | 155×89.2 mm (H×V) |
Outline Depth : | 16.0 (Typ.) mm |
Landscape or Portrait : | Landscape type |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
LS024Q8UC92 | SHARP | 2.4" | 240×320 |
LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items

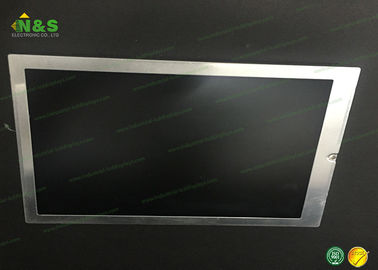

LQ065T5AR06 Picture
