Product Details:
|
Panel Brand: | Sharp | Panel Model: | LQ190E1LW72 |
---|---|---|---|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 19.0 Inch |
Resolution: | 1280(RGB)×1024 , SXGA | Display Mode: | ASV, Normally Black, Transmissive |
High Light: | sharp lcd screen,sharp lcd flat screen |
LQ190E1LW72 Normally Black Sharp LCD Panel 19.0 inch with 376.32×301.056 mm
LQ190E1LW72 Detail
Panel Brand : | SHARP |
Panel Model : | LQ190E1LW72 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 19.0 inch |
Resolution : | 1280(RGB)×1024 , SXGA |
Display Mode : | ASV, Normally Black, Transmissive |
Active Area : | 376.32×301.056 mm |
Outline : | 396×323.6×12 mm |
Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Brightness : | 350 cd/m² (Typ.) |
Contrast Ratio : | 1500:1 (Typ.) |
Display Colors : | 16.7M (8-bit) , CIE1931 76% |
Response Time : | 35 (Typ.)(Tr+Td) |
Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | WLED Embedded (LED Driver) |
Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
Input Voltage : | 5.0V (Typ.) |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Panel Size : | 19.0 inch |
Dot Resolution : | 1280(RGB)×1024 (SXGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 86 PPI |
Aspect Ratio : | 5:4 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.098×0.294 mm (H×V) |
Pixel Pitch : | 0.294×0.294 mm (H×V) |
Weight : | 1.30Kgs (Max.) |
Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Active Area : | 376.32×301.056 mm (H×V) |
Bezel Area : | 382.00×307.55 mm (H×V) |
Outline Dimension : | 396×323.6 mm (H×V) |
Outline Depth : | 11.5±0.5 mm |
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

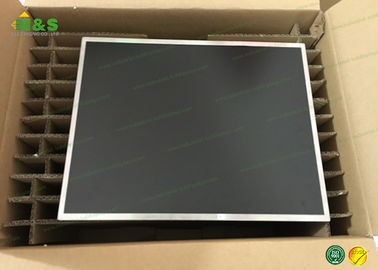

LQ190E1LW72 Picture
