Product Details:
|
| Resolution: | 640(RGB)×480 , VGA | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 170.88×129.6 Mm |
| Outline: | 242.5×179.4 Mm | Surface: | Clear, Hard Coating (2H) |
| Brightness: | 0 Cd/m² | Contrast Ratio: | 150:1 (Min.) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ9P161 Sharp LCD Panel 8.4 inch with 170.88×129.6 mm Active Area
LQ9P161 Specification
| Panel Size : | 8.4 inch | |
| Dot Resolution : | 640(RGB)×480 (VGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 94 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Flat Rectangle Display | |
| Dot Pitch : | 0.089×0.270 mm (H×V) | |
| 0.267×0.270 mm (H×V) | |
| Weight : | 330±20g | |
| Clear, Hard coating (2H) | |
| Active Area : | 170.88×129.6 mm (H×V) | |
| 175.5×134.2 mm (H×V) | |
| Outline Dimension : | 242.5×179.4 mm (H×V) | |
| 7.5 (Typ.) mm | |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7) | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without | |
| TN, Normally White, Transmissive | |
| Brightness : | 0 cd/m² | |
| Contrast Ratio : | 150 : 1 (Min.) (Transmissive) | |
| Display Color : | 4096 (4-bit) | |
| 20/40 (Typ.)(Tr/Td) | |
| 35/35/30/10 (Min.)(CR≥10) (L/R/U/D) | |
| Transmissivity : | 9.1% (Typ.)(with Polarizer) | |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok

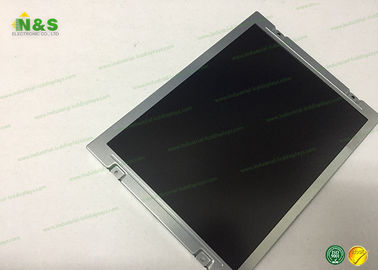

LQ9P161 Picture
