Product Details:
|
| Resolution: | 640(RGB)×480 , VGA | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 170.88×129.6 Mm |
| Outline: | 243.5×180 Mm | Surface: | Antiglare, Hard Coating (2H) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
8.4 inch LQ9P021 Sharp LCD Panel Normally White for Projector panel
LQ9P021 Specification
| Panel Size : | 8.4 inch | |
| Dot Resolution : | 640(RGB)×480 (VGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 94 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Flat Rectangle Display | |
| Dot Pitch : | 0.089×0.270 mm (H×V) | |
| 0.267×0.270 mm (H×V) | |
| Weight : | 360±20g | |
| Antiglare, Hard coating (2H) | |
| Active Area : | 170.88×129.6 mm (H×V) | |
| 182.8×142.6 mm (H×V) | |
| Outline Dimension : | 243.5×180 mm (H×V) | |
| 9.0 (Max.) mm | |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7) | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without | |
| TN, Normally White | |
| Brightness : | 0 cd/m² | |
| Contrast Ratio : | 60 : 1 (Min.) (Transmissive) | |
| Display Color : | 512 (3-bit) | |
| 30/50 (Typ.)(Tr/Td) | |
| 35/35/30/10 (Min.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| Transmissivity : | 5.8% (Typ.)(with Polarizer) | |
| N |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

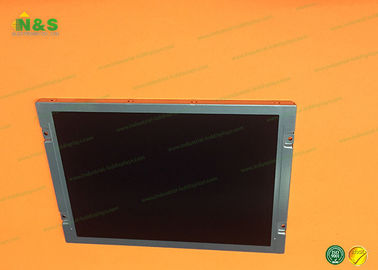

LQ9P021 Picture
