Product Details:
|
Resolution: | 240(RGB)×400 , WQVGA | Panel Size: | 2.8 Inch |
---|---|---|---|
Panel Type: | CG-Silicon , LCM | Display Mode: | ASV, Normally Black, Transflective |
Active Area: | 36×60 Mm | Outline: | 41.8×70.5×2.4 Mm |
High Light: | sharp lcd display panels,sharp lcd screen |
Hard coating LS028B7UX01 Sharp LCD Panel 2.8 inch LCM 240×400 300 400:1 262K WLED CPU
LS028B7UX01 Detail
Panel Size : | 2.8 inch | |
Dot Resolution : | 240(RGB)×400 (WQVGA) | |
Pixel Configuration : | RGB Vertical Stripe | |
Pixel Density : | 169 PPI | |
Aspect Ratio : | 3:5 (H:V) | |
|
Flat Rectangle Display | |
Dot Pitch : | 0.050×0.150 mm (H×V) | |
|
0.150×0.150 mm (H×V) | |
Weight : | 10.0g (Typ.) | |
|
Hard coating (3H) | |
Active Area : | 36×60 mm (H×V) | |
|
41.8×70.5 mm (H×V) | |
Outline Depth : | 2.3±0.1 mm | |
|
Portrait type | |
Touch Panel : | Without | |
Display Mode : | ASV, Normally Black, Transflective | |
Brightness : | 300 cd/m² (Typ.) | |
|
400 : 1 (Typ.) (Transmissive) | |
Contrast Ratio : | 13:1 (Typ.) (Reflective) | |
Display Color : | 262K () | |
Color Gamut : | 70% NTSC (CIE1931) | |
|
25/15 (Typ.)(Tr/Td) | |
|
80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) | |
Viewing Direction : | Symmetry | |
White color Chromaticity : | Wx:0.300; Wy:0.320 | |
|
1.6/2.5% (Min.Typ.) | |
Sunlight Readable : | Y |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Packing & Delivery for our LCD Screen Panel Replacements:
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LK315T3HC1K | SHARP | 31.5" | 1366×768 |
LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

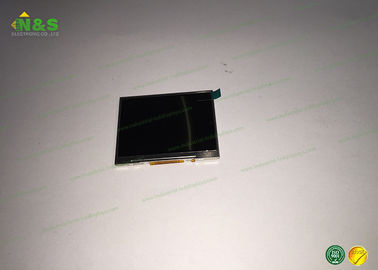

LS028B7UX01 Picture
