Product Details:
|
| Resolution: | 1280(RGB)×800 , WXGA | Panel Size: | 15.4 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 331.2×207 Mm |
| Outline: | 344×222×6.5 Mm | Shape Style: | Wedge (PCBA Bent, Depth ≥5.2mm) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
15.4 inch LQ154K1LA1F Sharp LCD Panel Normally White LCM 1280×800 290 600:1 262K CCFL LVDS
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Our Advantages
LQ154K1LA1F Detail
| Panel Size : | 15.4 inch | ||||||||||||||||||
| Dot Resolution : | 1280(RGB)×800 (WXGA) | ||||||||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||||||||||||
| Pixel Density : | 98 PPI | ||||||||||||||||||
| Aspect Ratio : | 16:10 (H:V) | ||||||||||||||||||
| Form Factor : | Flat Rectangle Display | ||||||||||||||||||
| Dot Pitch : | 0.08625×0.25875 mm (H×V) | ||||||||||||||||||
| Pixel Pitch : | 0.25875×0.25875 mm (H×V) | ||||||||||||||||||
| Weight : | 590/610g (Typ./Max.) | ||||||||||||||||||
|
Glare (Haze 0%), Hard coating (2H), Antireflection | ||||||||||||||||||
| Active Area : | 331.2×207 mm (H×V) | ||||||||||||||||||
|
336.2×211.9 mm (H×V) | ||||||||||||||||||
| Outline Dimension : | 344×222 mm (H×V) | ||||||||||||||||||
|
6.5 (Max.) mm | ||||||||||||||||||
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) | ||||||||||||||||||
| Holes & Brackets : | Side mounting holes (8-M2) on left, right bezel | ||||||||||||||||||
| Landscape or Portrait : | Landscape type | ||||||||||||||||||
|
Without | ||||||||||||||||||
| Display Mode : | TN, Normally White, Transmissive | ||||||||||||||||||
| Brightness : | 290 cd/m² (Typ.) | ||||||||||||||||||
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) | ||||||||||||||||||
| Display Color : | 262K (6-bit) | ||||||||||||||||||
| Response Time : | 15 (Typ.)(Tr+Td) | ||||||||||||||||||
|
70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) | ||||||||||||||||||
| Viewing Direction : | 6 o'clock | ||||||||||||||||||
|
Wx:0.313; Wy:0.329 | ||||||||||||||||||
| White Variation : | 1.20/1.45 (Typ./Max.)(5 points) | ||||||||||||||||||
|
N | ||||||||||||||||||
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |

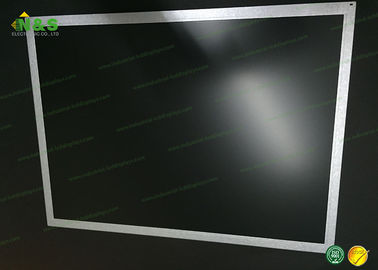

LQ154K1LA1F Picture
