Product Details:
|
| Resolution: | 1280(RGB)×1024 , SXGA | Panel Size: | 19.0 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 376.32×301.056 Mm |
| Brightness: | 450 Cd/m² (Typ.) | Contrast Ratio: | 950:1 (Typ.) |
| Outline: | 404.2×330×22.5 Mm | Surface: | Glare (Haze 0%), Hard Coating (2H) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ190E1LX31 Sharp LCD Panel 19.0 inch with 376.32×301.056 mm Active Area
LQ190E1LX31 Specification
| Panel Size : | 19.0 inch | ||||||||||||||||||||||
| Dot Resolution : | 1280(RGB)×1024 (SXGA) | ||||||||||||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||||||||||||||||
| Pixel Density : | 86 PPI | ||||||||||||||||||||||
| Aspect Ratio : | 5:4 (H:V) | ||||||||||||||||||||||
| Form Factor : | Flat Rectangle Display | ||||||||||||||||||||||
| Dot Pitch : | 0.098×0.294 mm (H×V) | ||||||||||||||||||||||
| Pixel Pitch : | 0.294×0.294 mm (H×V) | ||||||||||||||||||||||
|
3.20Kgs (Max.) | ||||||||||||||||||||||
| Surface : | Glare (Haze 0%), Hard coating (2H) | ||||||||||||||||||||||
|
|
376.32×301.056 mm (H×V) | ||||||||||||||||||||||
| Bezel Area : | 382.32×307.06 mm (H×V) | ||||||||||||||||||||||
| Outline Dimension : | 404.2×330 mm (H×V) | ||||||||||||||||||||||
| Outline Depth : | 22.0±0.5 mm | ||||||||||||||||||||||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | ||||||||||||||||||||||
| Landscape or Portrait : | Landscape type | ||||||||||||||||||||||
|
Without | ||||||||||||||||||||||
| Display Mode : | P-MVA, Normally Black, Transmissive | ||||||||||||||||||||||
| Brightness : | 450 cd/m² (Typ.) | ||||||||||||||||||||||
| Contrast Ratio : | 950 : 1 (Typ.) (Transmissive) | ||||||||||||||||||||||
| Display Color : | 16.7M (8-bit) | ||||||||||||||||||||||
| Response Time : | 12/24 (Typ.)(Tr/Td) | ||||||||||||||||||||||
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | ||||||||||||||||||||||
| Viewing Direction : | Symmetry | ||||||||||||||||||||||
|
Wx:0.313; Wy:0.329 | ||||||||||||||||||||||
| White Variation : | 1.43 (Max.)(9 points) | ||||||||||||||||||||||
| Sunlight Readable : | N | ||||||||||||||||||||||
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

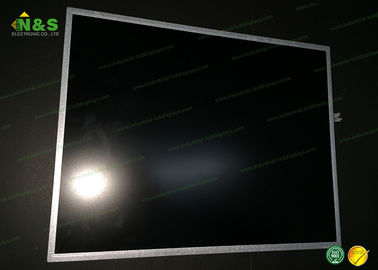

LQ190E1LX31 Picture
