Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.3 Inch |
|---|---|---|---|
| Resolution: | 160(RGB)×176 | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 56.2×61.4 Mm | Outline: | 73×78.3 Mm |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ033B5DG02 Normally White SHARP 3.3 inch with 56.2×61.4 mm Active Area
LQ033B5DG02 Detail
| Panel Size : | 3.3 inch |
|---|---|
| Dot Resolution : | 160(RGB)×176 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 72 PPI |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.117×0.349 mm (H×V) |
| Pixel Pitch : | 0.351×0.349 mm (H×V) |
| Weight : | 90g |
| Active Area : | 56.2×61.4 mm (H×V) |
| Outline Dimension : | 73×78.3 mm (H×V) |
| Outline Depth : | 12.5 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 290 cd/m² (Typ.) |
| Display Color : | 262K (6-bit) |
| Sunlight Readable : | N |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |

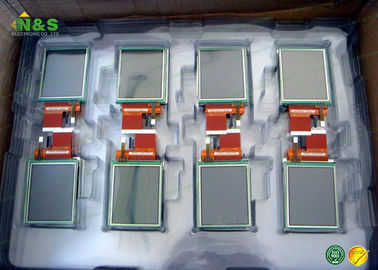

LQ033B5DG02 Picture
