Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.0 Inch |
---|---|---|---|
Resolution: | 240(RGB)×400 , WQVGA | Display Mode: | TN, Normally White, Transflective |
Active Area: | 38.88×64.8 Mm | Outline: | 47.28×76.4 Mm |
High Light: | sharp lcd display panels,sharp lcd screen |
3.0 inch Normally White LQ030B7UB02 SHARP LCD Panel for Handheld Product panel
LQ030B7UB02 Detail
Panel Size : | 3.0 inch |
---|---|
Dot Resolution : | 240(RGB)×400 (WQVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 156 PPI |
Aspect Ratio : | 3:5 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.054×0.162 mm (H×V) |
Pixel Pitch : | 0.162×0.162 mm (H×V) |
Weight : | 24g (Typ.) |
Surface : | Hard coating (3H), Antireflection |
Active Area : | 38.88×64.8 mm (H×V) |
Outline Dimension : | 47.28×76.4 mm (H×V) |
Outline Depth : | 3.25±0.2 mm |
Landscape or Portrait : | Portrait type |
Touch Panel : | Without |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Display Mode : | TN, Normally White, Transflective |
---|---|
Brightness : | 150 cd/m² (Typ.) |
Contrast Ratio : | 100 : 1 (Typ.) (Transmissive) |
Contrast Ratio : | 15:1 (Typ.) (Reflective) |
Display Color : | 65K/262K () |
Response Time : | 30/30 (Typ.)(Tr/Td) |
Viewing Angle : | 60/60/65/50 (Typ.)(CR≥2) (L/R/U/D) |
Viewing Direction : | 12 o'clock |
White color Chromaticity : | Wx:0.310; Wy:0.340 |
Reflectance Ratio : | 7/10% (Min./Typ.) |
Sunlight Readable : | Y |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LK315T3HC1K | SHARP | 31.5" | 1366×768 |
LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

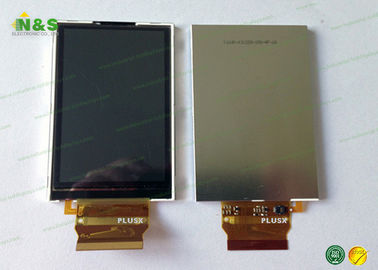

LQ030B7UB02 Picture
