Product Details:
|
Panel Type: | CG-Silicon , LCM | Panel Size: | 2.4 Inch |
---|---|---|---|
Resolution: | 320(RGB)×480 , HVGA | Display Mode: | Normally Black, Transmissive |
High Light: | sharp lcd screen,sharp lcd flat screen |
LS024J3LX01 Sharp LCD Panel 2.4 inch with 33.6×50.4 mm Active Area
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
LS024J3LX01 Specification
Panel Size : | 2.4 inch |
Dot Resolution : | 320(RGB)×480 (HVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 241 PPI |
Aspect Ratio : | 2:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.035×0.105 mm (H×V) |
Pixel Pitch : | 0.105×0.105 mm (H×V) |
Weight : | 9.3g |
Active Area : | 33.6×50.4 mm (H×V) |
Outline Dimension : | 38.6×60.4 mm (H×V) |
Outline Depth : | 1.9±0.15 mm |
Landscape or Portrait : | Portrait type |
Touch Panel : | Without |
Display Mode : | Normally Black, Transmissive |
Brightness : | 370 cd/m² (Typ.) |
Contrast Ratio : | 540 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M () |
Color Gamut : | 81% NTSC (CIE1931) |
Response Time : | 7/15 (Typ.)(Tr/Td) |
Sunlight Readable : | N |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |

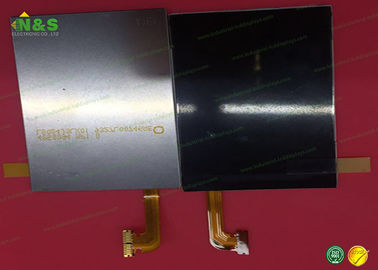

LS024J3LX01 Picture
