Product Details:
|
| Panel Size: | 1.35 Inch | Resolution: | 96×96 |
|---|---|---|---|
| Active Area: | 24.192×24.192 Mm | Display Mode: | PNLC, Reflective |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
SHARP LS013B4DN04 Reflective LCD Panel 1.35 inch with 24.192×24.192 mm
LS013B4DN04 Detail
| Panel Size : | 1.35 inch |
| Dot Resolution : | 96×96 |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 100 PPI |
| Aspect Ratio : | 1:1 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.252×0.252 mm (H×V) |
| Pixel Pitch : | 0.252×0.252 mm (H×V) |
| Weight : | 3.6g (Typ.) |
| Surface : | Without Polarizer, Hard coating (3H) |
| Active Area : | 24.192×24.192 mm (H×V) |
| Outline Dimension : | 28.2×32.34 mm (H×V) |
| Outline Depth : | 1.40 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | PNLC, Reflective |
| Contrast Ratio : | 10:1 (Typ.) (Reflective) |
| Display Color : | Monochrome () |
| Response Time : | 50/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/60/60 (Min.)(CR≥3) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.338 |
| Reflectance Ratio : | 50% (Typ.) |
| Sunlight Readable : | Y |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.

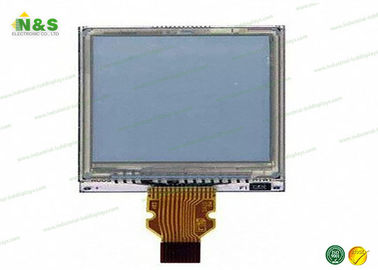

LS013B4DN04 Picture
