Product Details:
|
Panel Size: | 8.4 Inch | Resolution: | 640(RGB)×480 , VGA |
---|---|---|---|
Active Area: | 170.88×129.6 Mm | Display Mode: | TN, Normally White, Transmissive |
Panel Type: | A-Si TFT-LCD , LCM | Display Colors: | 4096 (4-bit) |
Surface: | Clear, Hard Coating (2H) | Brightness: | 115 Cd/m² (Typ.) |
High Light: | sharp lcd display panels,sharp lcd flat screen |
Clear LQ9D340 Sharp LCD Panel 8.4 inch LCM 640×480 115 100:1 262K CCFL TTL
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
LQ9D340 Specification
Panel Size : | 8.4 inch |
Dot Resolution : | 640(RGB)x480 (VGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 94 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.089x0.270 mm (HxV) |
Pixel Pitch : | 0.267x0.270 mm (HxV) |
Weight : | 260±10g |
Surface : | Clear, Hard coating (2H) |
Active Area : | 170.88x129.6 mm (HxV) |
Bezel Area : | 175.9x134.6 mm (HxV) |
Outline Dimension : | 216x152.4 mm (HxV) |
Outline Depth : | 7.3 (Typ.) mm |
Holes & Brackets : | Face mounting holes (2-2.7, 2-R1.5) |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 115 cd/m² (Typ.) |
Contrast Ratio : | 100 : 1 (Typ.) (Transmissive) |
Display Color : | 262K (6-bit) |
Response Time : | 20/40 (Typ.)(Tr/Td) |
Viewing Angle : | 50/50/30/50 (Min.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : | 1.45 (Max.)(5 points) |
Sunlight Readable : | N |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |

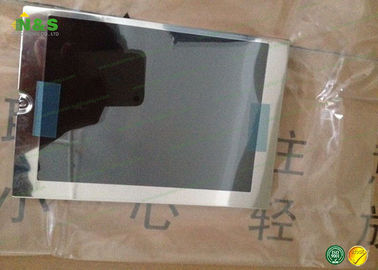

LQ9D340 Picture
