Product Details:
|
| Panel Size: | 8.4 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Active Area: | 170.88×129.6 Mm | Outline: | 242.5×179.4 Mm |
| Surface: | Antiglare, Hard Coating (2H) | Brightness: | 70 Cd/m² (Typ.) |
| Contrast Ratio: | 60:1 (Typ.) | Response Time: | 30/50 (Typ.)(Tr/Td) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
Normally White LQ9D021 Sharp LCD Panel SHARP 8.4 inch LCM 640×480 70 60:1 512 CCFL TTL
LQ9D021 Specification
| Panel Size : | 8.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.089×0.270 mm (H×V) |
| Pixel Pitch : | 0.267×0.270 mm (H×V) |
| Weight : | 485±20g |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 170.88×129.6 mm (H×V) |
| Bezel Area : | 182.8×142.6 mm (H×V |
| Outline Dimension : | 242.5×179.4 mm (H×V) |
| Outline Depth : | 8.7 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 70 cd/m² (Typ.) |
| Contrast Ratio : | 60 : 1 (Typ.) (Transmissive) |
| Display Color : | 512 (3-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 35/35/10/30 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.300; Wy:0.311 |
| White Variation : | 1.45 (Max.)(5 points) |
| Sunlight Readable : | N |
Our Company Strength in LCD Screen Sourcing:
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

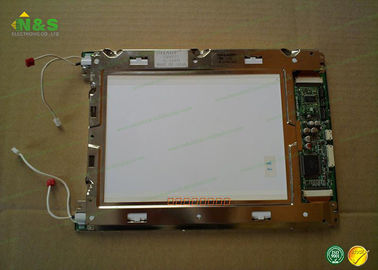

LQ9D021 Picture
