Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ106K1LA05 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.6 Inch |
| Resolution: | 1280(RGB)×768 , WXGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
10.6 inch LQ106K1LA05 Sharp LCD PanelHard coating LCM 1280×768 280 350:1 262K WLED LVDS
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
LQ106K1LA05 Detail
| Panel Brand : | SHARP |
| Panel Model : | LQ106K1LA05 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.6 inch |
| Resolution : | 1280(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 230.4×138.24 mm |
| Outline : | 257.8×152×5 mm |
| Surface : | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Brightness : | 280 cd/m² (Typ.) |
| Contrast Ratio : | 350:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 9S5P WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
| Panel Size : | 10.6 inch |
| Dot Resolution : | 1280(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.060×0.180 mm (H×V) |
| Pixel Pitch : | 0.180×0.180 mm (H×V) |
| Weight : | 175g (Typ.) |
| Surface : | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Active Area : | 230.4×138.24 mm (H×V) |
| Bezel Area : | 235.2×143.0 mm (H×V) |
| Outline Dimension : | 257.8×152 mm (H×V) |
| Outline Depth : | 5.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (6 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Input Voltage : | 3.3V (Typ.) |

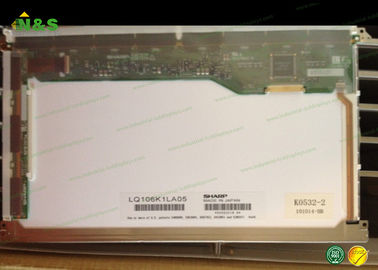

LQ106K1LA05 Picture
