Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ064V3DG06 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.4 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
Antiglare LQ064V3DG06 Sharp LCD Panel 6.4 inch with 130.56×97.92 mm
LQ064V3DG06 Detail
| Panel Brand : | SHARP |
| Panel Model : | LQ064V3DG06 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.4 inch |
| Resolution : | 640×480(RGB) , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 130.56×97.92 mm |
| Outline : | 161.3×117×12.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 8/21 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3V (Typ.) |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
| Panel Size : | 6.4 inch |
| Dot Resolution : | 640×480(RGB) (VGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 124 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.204×0.068 mm (H×V) |
| Pixel Pitch : | 0.204×0.204 mm (H×V) |
| Weight : | 200g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 130.56×97.92 mm (H×V) |
| Outline Dimension : | 161.3×117 mm (H×V) |
| Outline Depth : | 12±0.5 mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

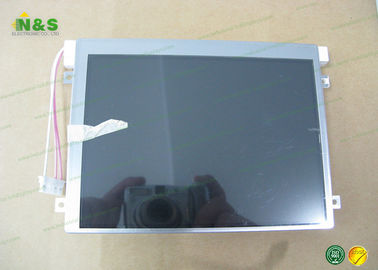

LQ064V3DG06 Picture
