Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ064V3DG01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.4 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
6.4 inch LQ064V3DG01 Sharp LCD Panel Normally White LCM 640×480 350 350:1 262K CCFL TTL
LQ064V3DG01 Specification
| Panel Brand : | SHARP |
| Panel Model : | LQ064V3DG01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 130.56×97.92 mm |
| Outline : | 161.3×117 mm |
| Surface : | Antiglare |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 350:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 8/21 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/40/70 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| Panel Size : | 6.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 124 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.068×0.204 mm (H×V) |
| Pixel Pitch : | 0.204×0.204 mm (H×V) |
| Weight : | 280g (Max.) |
| Surface : | Antiglare |
| Active Area : | 130.56×97.92 mm (H×V) |
| Outline Dimension : | 161.3×117 mm (H×V) |
| Outline Depth : | 12.0 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4-Ф3.2) on bracket |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
We can do for You:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

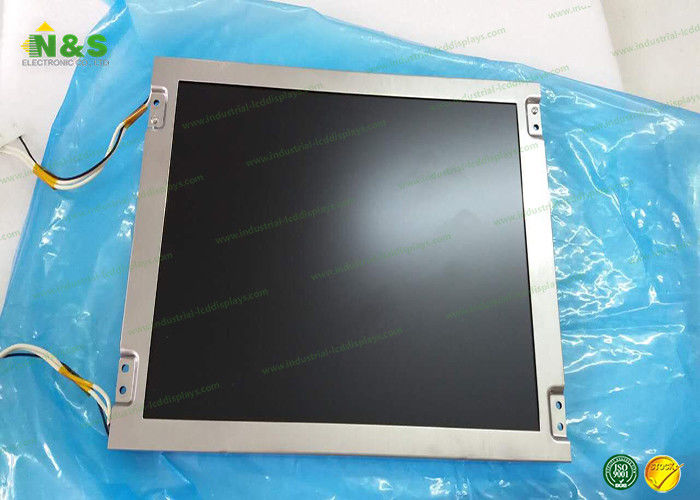

LQ064V3DG01 Picture
