LQ070T5DG01 7 lcd screen , Sharp LCD Panel Antiglare 155×87.12 mm

LQ070T5DG01 Sharp LCD Panel 7.0 inch with 155×87.12 mm

LQ070T5DG01 Detail

Panel Brand :	SHARP
Panel Model :	LQ070T5DG01
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	7.0 inch
Resolution :	854(RGB)×480 , FWVGA
Display Mode :	TN, Normally White, Transmissive
Active Area :	155×87.12 mm
Outline :	176.9×109.3 mm
Surface :	Antiglare
Brightness :	410 cd/m² (Typ.)
Contrast Ratio :	60:1 (Min.)
Display Colors :	262K (6-bit)
Response Time :	30/50 (Typ.)(Tr/Td)
Viewing Angle :	65/65/40/65 (Typ.)(CR≥5) (L/R/U/D)
Lamp Type :	1 pcs CCFL Without Driver
Signal Interface :	Parallel RGB (1 ch, 6-bit) , 31 pins
Input Voltage :	5/10/-10V (Typ.)(VSH/VGH/VGL)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Size :	7.0 inch
Dot Resolution :	854(RGB)×480 (FWVGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	139 PPI
Aspect Ratio :	16:9 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.0605×0.1815 mm (H×V)
Pixel Pitch :	0.1815×0.1815 mm (H×V)
Weight :	300±20g
Surface :	Antiglare
Active Area :	155×87.12 mm (H×V)
Bezel Area :	160.2×92.7 mm (H×V)
Outline Dimension :	176.9×109.3 mm (H×V)
Outline Depth :	14.9 (Typ.) mm
Holes & Brackets :	Rear mounting holes (4-Φ2.2)
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

We can do for you:

1. Provide excellent LCD screen replacements with competitive price.
2. Safe, quick and efficient supply chain.
3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
4. Your problems will be replied within 24 hours.

Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.

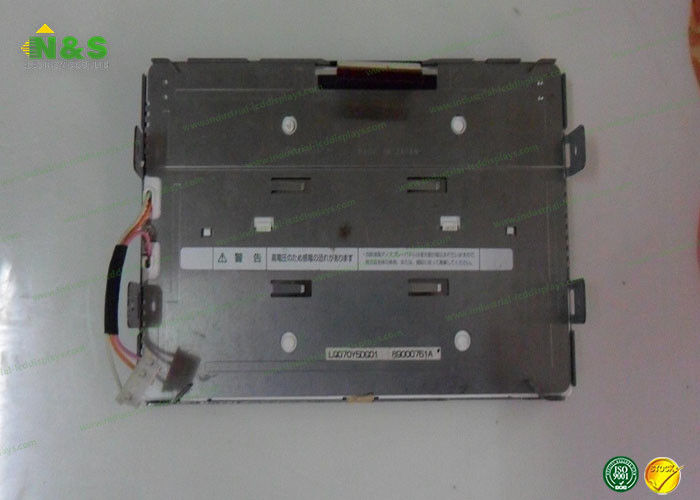

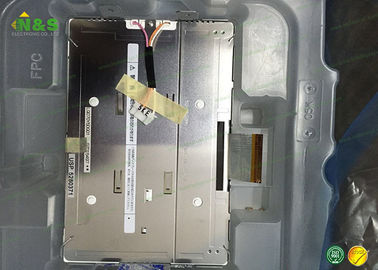

LQ070T5DG01 Picture
