Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 19.0 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024 , SXGA | Display Mode: | ASV, Normally Black, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ190E1LW43 SHARP 19.0 inch with 376.32×301.056 mm Active Area
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
LQ190E1LW43 Detail
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 3.20Kgs (Max.) |
| Surface : | Antiglare (Haze 40%), Hard coating (2H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 382.32×307.06 mm (H×V) |
| Outline Dimension : | 404.2×330 mm (H×V) |
| Outline Depth : | 22.0±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | ASV, Normally Black, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 900 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 12 (Typ.)(Tr+Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.43 (Max.)(9 Points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

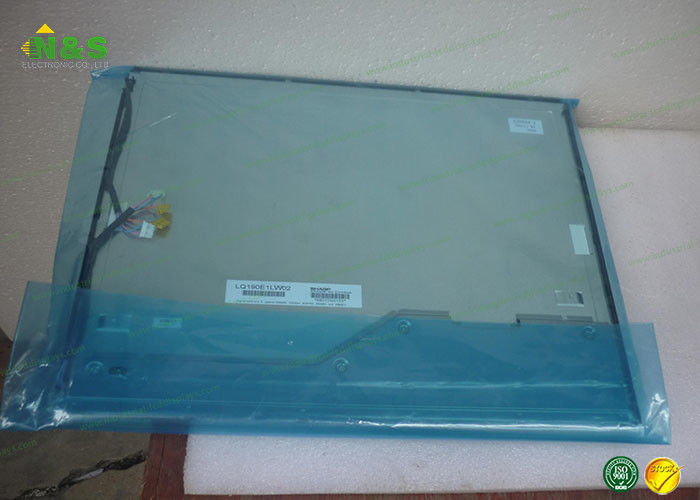

LQ190E1LW43 Picture
