Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ150X1LAM3 SHARP 15.0 inchwith 304.1×228.1 mm Active Area
Our Company Strength in LCD Screen Sourcing:
LQ150X1LAM3 Specification
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 840/870g (Typ./Max.) |
| Surface : | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Active Area : | 304.1×228.1 mm (H×V) |
| Outline Dimension : | 315.8×243.2 mm (H×V) |
| Outline Depth : | 10.3 (Max.) mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets : | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 600 cd/m² (Typ.) |
| Contrast Ratio : | 450 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.32 |
| White Variation : | 1.50/2.00 (Typ./Max.)(13 Points) |
| Sunlight Readable : | N |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

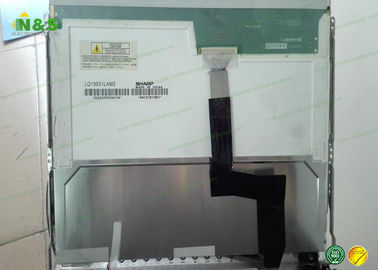

LQ150X1LAM3 Picture
