Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
Antiglare LQ150X1DG51 SHARP LCD Panel 15.0 inch with 304.1×228.1 mm
LQ150X1DG51 Detail
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)x768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099x0.297 mm (HxV) |
| Pixel Pitch : | 0.297x0.297 mm (HxV) |
| Weight : | 1.35Kgs (Max.) |
| Surface : | Antiglare (Haze 28%), Hard coating |
| Active Area : | 304.1x228.1 mm (HxV) |
| Bezel Area : | 307.7x231.7 mm (HxV) |
| Outline Dimension : | 340x264 mm (HxV) |
| Outline Depth : | 15.0 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (2-3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 10/35 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.35 (Max.)(5 points) |
| Sunlight Readable : | N |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| ED133UT1 | E Ink | 13.3" | 1600×1200 |
| ES133UT1 | E Ink | 13.3" | 1600×1200 |
| ED060SCQ | E Ink | 6.0" | 600×800 |
| ED097OD2 | E Ink | 9.7" | 1200×825 |
| ED060KG1 | E Ink | 6.0" | 1072×1448 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

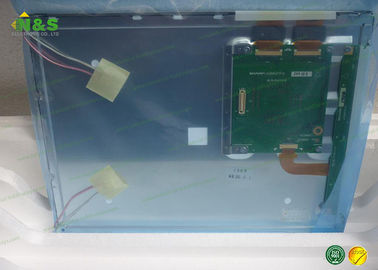

LQ150X1DG51 Picture
