LQ121S1LH02 SHARP 12.1 inch LCM 800×600 70 300:1 262K CCFL LVDS

LQ121S1LH02 	SHARP  	12.1 inch	LCM 	800×600  	70 	300:1 	262K 	CCFL 	LVDS
LQ121S1LH02 	SHARP  	12.1 inch	LCM 	800×600  	70 	300:1 	262K 	CCFL 	LVDS

Large Image :  LQ121S1LH02 SHARP 12.1 inch LCM 800×600 70 300:1 262K CCFL LVDS

Product Details:
Place of Origin: KOREA
Brand Name: SHARP
Certification: iso9001
Model Number: LQ121S1LH02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3WORK DAY
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

LQ121S1LH02 SHARP 12.1 inch LCM 800×600 70 300:1 262K CCFL LVDS

Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 11.0 Inch
Resolution: 800(RGB)×600 , SVGA Display Mode: TN, Normally White, Transmissive
High Light:

sharp lcd screen

,

sharp lcd flat screen

LQ121S1LH02 SHARP 12.1 inch LCM 800×600 70 300:1 262K CCFL LVDS

FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare


LQ121S1LH02 Specification


Panel Size :12.1 inch
Dot Resolution :800(RGB)x600 (SVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :82 PPI
Aspect Ratio :4:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.1025x0.3075 mm (HxV)
Pixel Pitch :0.3075x0.3075 mm (HxV)
Weight :400/410g (Typ./Max.)
Surface :Antiglare, Hard coating (2H), Reflection 5.0% (Max.)
Active Area :246x184.5 mm (HxV
Bezel Area :250.0x188.5 mm (HxV)
Outline Dimension :275x199 mm (HxV)
Outline Depth :5.7 (Max.) mm
Holes & Brackets :Face mounting holes (2-3.4, 2-R1.7) on left, right bezel
Landscape or Portrait :Landscape type
Touch Panel :Without
Display Mode :TN, Normally White, Transmissive
Brightness :70 cd/m² (Typ.)
Contrast Ratio :300 : 1 (Typ.) (Transmissive)
Display Color :262K (6-bit)
Response Time :15/30 (Typ.)(Tr/Td)
Viewing Angle :45/45/10/30 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction :6 o'clock
White color Chromaticity :Wx:0.313; Wy:0.329
White Variation :1.45 (Max.)(5 points)
Sunlight Readable :N


Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
LK315T3HC1KSHARP31.5"1366×768
LQ055T3SX04SHARP5.5"1080×1920
LQ079L1SX06SHARP7.9"1536×2048
LQ079L1SX04SHARP7.9"1536×2048
LQ133M1JW08SHARP13.3"1920×1080
LQ156D1JX02SHARP15.6"3840×2160

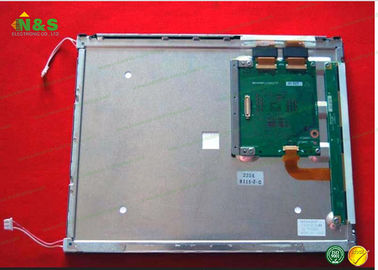

LQ121S1LH02 Picture
