Normally White LQ121S1LG79 SHARP 12.1 inch with 246×184.5 mm

Normally White LQ121S1LG79 	SHARP 	 	12.1 inch with 	246×184.5 mm
Normally White LQ121S1LG79 	SHARP 	 	12.1 inch with 	246×184.5 mm

Large Image :  Normally White LQ121S1LG79 SHARP 12.1 inch with 246×184.5 mm

Product Details:
Place of Origin: KOREA
Brand Name: SHARP
Certification: iso9001
Model Number: LQ121S1LG79
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3WORK DAY
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

Normally White LQ121S1LG79 SHARP 12.1 inch with 246×184.5 mm

Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 11.0 Inch
Resolution: 800(RGB)×600 , SVGA Display Mode: TN, Normally White, Transmissive
High Light:

sharp lcd display panels

,

sharp lcd flat screen

Normally White LQ121S1LG79 SHARP 12.1 inch with 246×184.5 mm



Company Strength:

1>ISO9001 certificated.

2> Competitive Price and Short Lead-time

3> Professional Team with Rich Experiences in LCD Screen International trade.

4> Small MOQ Support & Fast Response to Customers

5> Long Product Life Time

6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.

7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.

8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.



Our Services

1. Quick and accurate reply with best service attidue to our business

2. Pofessional advise

3. Quick PI confirmation

4. Close production follow up and production process feedback

5. Safe package

6. Get feekback from your side when items arrived,

7. 24 months warranty for items



LQ121S1LG79 Product Information

Panel Size : 12.1 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 82 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.1025×0.3075 mm (H×V)
Pixel Pitch : 0.3075×0.3075 mm (H×V)
Weight : 550g (Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 246×184.5 mm (H×V)
Bezel Area : 249.6×188.1 mm (H×V)
Outline Dimension : 265×205 mm (H×V)
Outline Depth : 9.5±0.5 mm
Holes & Brackets : Side mounting holes (4-M2) on up, down bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 330 cd/m² (Typ.)
Contrast Ratio : 800 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Color Gamut : 78% NTSC (CIE1931)
Response Time : 30 (Typ.)(Tr+Td)
Viewing Angle : 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.290; Wy:0.305
White Variation : 1.33 (Max.)(5 points)
Sunlight Readable : N



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800
LQ133T1JW14B SHARP 13.3" 2560×1440
LQ047K3SX04 SHARP 4.7" 720×1280
LS024Q8UC92 SHARP 2.4" 240×320
LK235D3HA0S SHARP 23.6" 1920×1080
LS055D1SX04 SHARP 5.5" 2160×3840

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

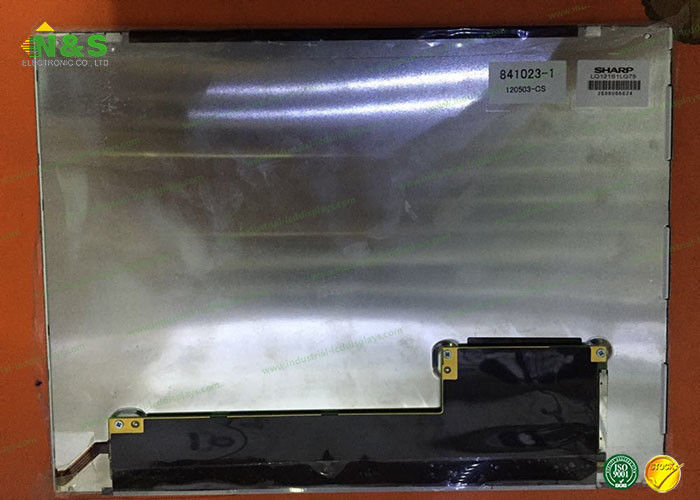

LQ121S1LG79 Picture
