Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ065T9DR53U |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
| Resolution: | 400(RGB)×240 , WQVGA | Display Mode: | TN, Normally White, Transflective |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ065T9DR53U Sharp LCD Panel 6.5 inch LCM 400×240 180 60:1 262K CCFL TTL
LQ065T9DR53U Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ065T9DR53U | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 6.5 inch | |
| Resolution : | 400(RGB)×240 , WQVGA | |
|
TN, Normally White, Transflective | |
| Active Area : | 143.4×79.326 mm | |
| Outline : | 155×89.2 mm | |
|
Antiglare, Antireflection | |
| Brightness : | 180 cd/m² (Typ.) | |
|
60:1 (Min.)(Transmissive) 5:1 (Typ.)(Reflective) | |
| Display Colors : | 262K (6-bit) | |
|
10/25 (Typ.)(Tr/Td) | |
| Viewing Angle : | 50/60/45/60 (Typ.)(CR≥5) (L/R/U/D) | |
| Lamp Type : | 1 pcs CCFL Without Driver | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins | |
| Input Voltage : | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| Panel Size : | 6.5 inch | |
| Dot Resolution : | 400(RGB)×240 (WQVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 72 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.1195×0.3305 mm (H×V) | |
| Pixel Pitch : | 0.3585×0.3305 mm (H×V) | |
|
205g (Max.) | |
| Surface : | Antiglare, Antireflection | |
|
143.4×79.326 mm (H×V) | |
| Outline Dimension : | 155×89.2 mm (H×V) | |
|
13.1 (Typ.) mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without | |

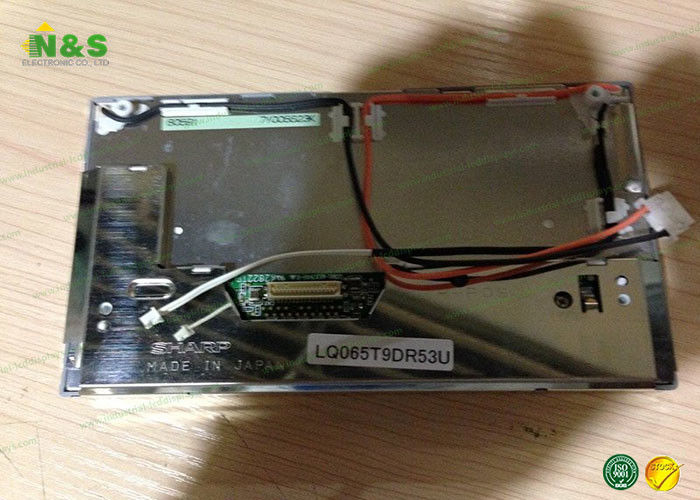

LQ065T9DR53U Picture
