Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ065T9BR51 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
| Resolution: | 400(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
6.5 inch LQ065T9BR51 Sharp LCD Panel Antiglare for Automotive Display
LQ065T9BR51 Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ065T9BR51 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 6.5 inch | |
| Resolution : | 400(RGB)×240 , WQVGA | |
|
TN, Normally White, Transflective | |
| Active Area : | 143.4×79.326 mm | |
| Outline : | 155×89.2 mm | |
| Surface : | Antiglare | |
| Brightness : | 220 cd/m² (Typ.) | |
|
60:1 (Typ.)(Transmissive) 7:1 (Typ.)(Reflective) | |
| Display Colors : | Full color | |
|
15/35 (Typ.)(Tr/Td) | |
| Viewing Angle : | 50/50/40/50 (Typ.)(CR≥5) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 1 pcs CCFL Without Driver | |
| Signal Interface : | Analog RGB + Composite Video (NTSC/PAL) , 24 pins | |
| Input Voltage : | 5/13/-16V (Typ.)(VSH/VGH/VGL) |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
| Panel Size : | 6.5 inch | |
| Dot Resolution : | 400(RGB)×240 (WQVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 72 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.1195×0.3305 mm (H×V) | |
| Pixel Pitch : | 0.3585×0.3305 mm (H×V) | |
|
190±10g | |
| Surface : | Antiglare | |
|
143.4×79.326 mm (H×V) | |
| Outline Dimension : | 155×89.2 mm (H×V) | |
|
12.5 (Typ.) mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

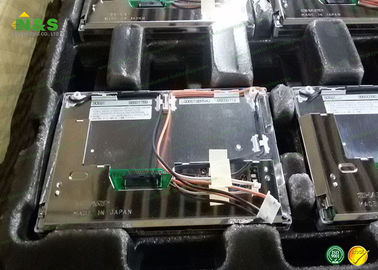

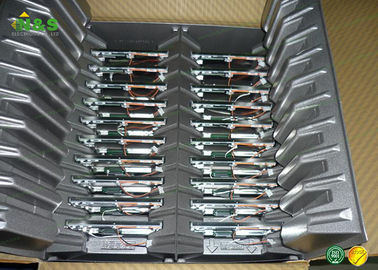

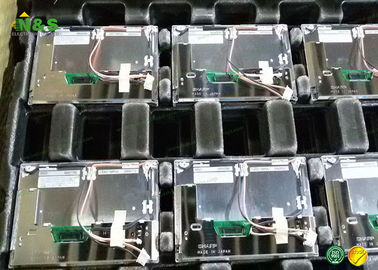

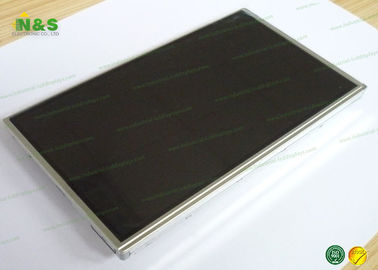

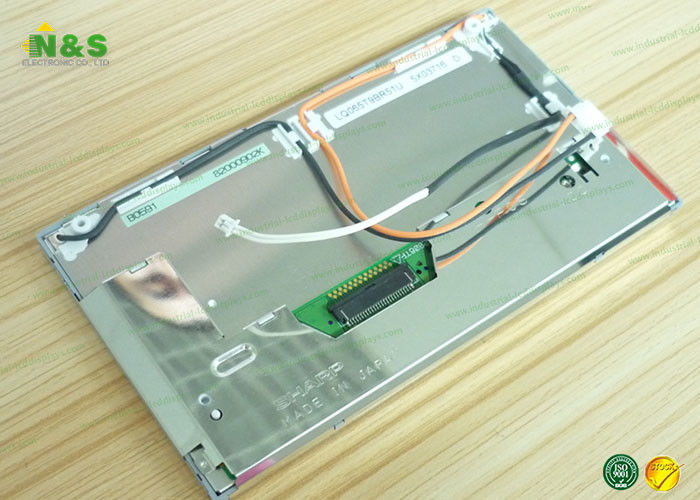

LQ065T9BR51 Picture
