Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ065T5GR01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
| Resolution: | 400(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Normally White LQ065T5GR01 6.5 inch Sharp LCD Panel with 143.4×79.326 mm
LQ065T5GR01 Product Information
| Panel Brand : | SHARP | |
| Panel Model : | LQ065T5GR01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 6.5 inch | |
| Resolution : | 400(RGB)×234 | |
| TN, Normally White, Transmissive | |
| Active Area : | 143.4×79.326 mm | |
| Outline : | 156.8×91.5 mm | |
| Surface : | ||
| Brightness : | 635 cd/m² (Typ.) | |
| ||
| Display Colors : | ||
| ||
| Viewing Angle : | ||
| Lamp Type : | 2 pcs CCFL | |
| Signal Interface : | TFT Specific Analog RGB |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 6.5 inch | |
| Dot Resolution : | 400(RGB)×234 | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 71 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
| Flat Rectangle Display | |
| Dot Pitch : | 0.1195×0.339 mm (H×V) | |
| Pixel Pitch : | 0.3585×0.339 mm (H×V) | |
| Weight : | 135g (Max.) | |
| Active Area : | 143.4×79.326 mm (H×V) | |
| 156.8×91.5 mm (H×V) | |
| Outline Depth : | 10.8 (Typ.) mm | |
| Landscape type |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

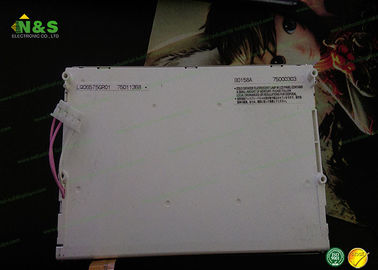

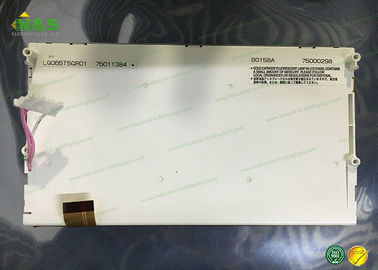

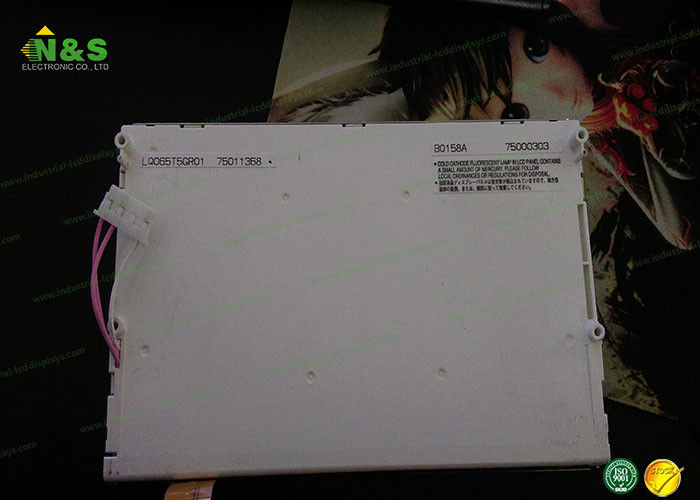

LQ065T5GR01 Picture
