Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ039Q2DS54 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.9 Inch |
| Resolution: | 320(RGB)×240 , QVGA | Display Mode: | TN, Normally White, Reflective |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
3.9 inch LQ039Q2DS54 Sharp LCD Panel with 79.2×58.32 mm
LQ039Q2DS54 Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ039Q2DS54 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 3.9 inch | |
| Resolution : | 320(RGB)×240 , QVGA | |
|
TN, Normally White, Reflective | |
| Active Area : | 79.2×58.32 mm | |
| Outline : | 104.5×79.6×6.75 mm | |
| Surface : | Hard coating (3H) | |
| Brightness : | 45 cd/m² (Typ.) | |
| Contrast Ratio : | 11/5(Reflective) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 30/50 (Typ.)(Tr/Td) | |
|
60/60/40/40 (Typ.)(CR≥2) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 1 pcs CCFL Without Driver | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 50 pins | |
| Input Voltage : | 5.0/3.3/15.0/-15.0V (Typ.)(VSHA/VSHD/VDD/VSS) | |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
| Panel Size : | 3.9 inch | |
| Dot Resolution : | 320(RGB)×240 (QVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 103 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0827×0.243 mm (H×V) | |
| Pixel Pitch : | 0.248×0.243 mm (H×V) | |
|
95±5g | |
| Surface : | Hard coating (3H) | |
| Active Area : | 79.2×58.32 mm (H×V) | |
| Outline Dimension : | 104.5×79.6 mm (H×V) | |
| Outline Depth : | 6.45±0.3 mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Embeded (4-wire Resistive) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

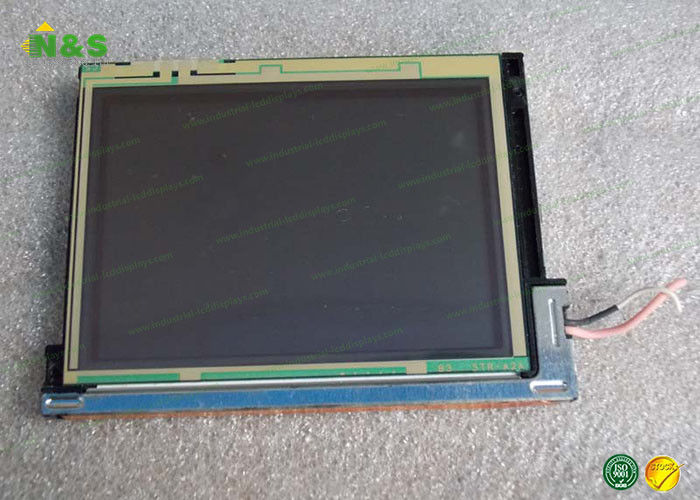

LQ039Q2DS54 Picture
