Product Details:
|
| Panel Model: | LS041Y3LW01 | Panel Type: | CG-Silicon , Panel |
|---|---|---|---|
| Panel Size: | 4.1 Inch | Contrast Ratio: | 400:1 (Typ.) |
| Display Colors: | 262K (6-bit) , CIE1931 50% | Response Time: | 22/12 (Typ.)(Tr/Td) |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LS041Y3LW01 Sharp Touch Panel 4.1 inch with 106.6*64.2 mm
| Panel Brand : | SHARP |
| Panel Model : | LS041Y3LW01 |
| Panel Type : | CG-Silicon , Panel |
| Panel Size : | 4.1 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | Normally Black, Transmissive |
| Active Area : | 90×54 mm |
| Outline : | 106.6×64.2 mm |
| Brightness : | 385 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 22/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) |
| Lamp Type : | WLED |
| Signal Interface : | FlatLink3G , 31 pins |
| Input Voltage : | 2.75/1.8V (Typ.)(VDD/VDD1) |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options.
• All steel construction provides rugged frame for public use environments
• Two independent touch points
• Improved power efficiency and reduced consumption
• ISO9001 approvals.
| Panel Size : | 4.1 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 225 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0375×0.1125 mm (H×V) |
| Pixel Pitch : | 0.1125×0.1125 mm (H×V) |
| Weight : | 41g (Typ.) |
| Active Area : | 90×54 mm (H×V) |
| Outline Dimension : | 106.6×64.2 mm (H×V) |
| Outline Depth : | 3.1 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 13 years experience in intelligent controller R&D and manufacturing.
6. Strong R&D term supports perfect customized projects.
7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.
8. Fabulous after-sale service.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |

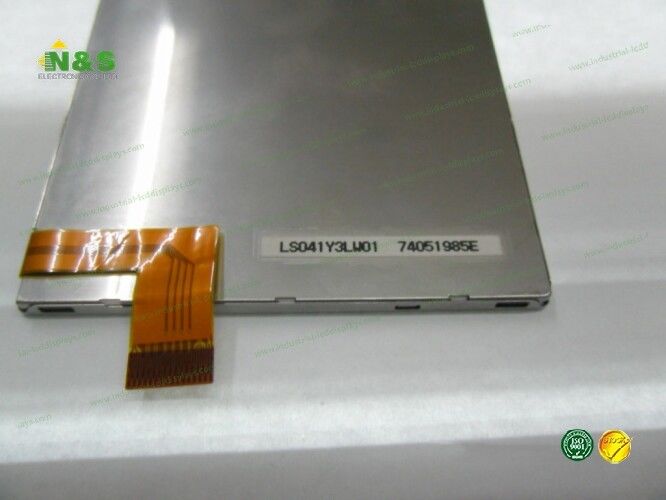

Details Pictures for LS041Y3LW01 Sharp Touch Panel
