Product Details:
|
| Panel Model: | LS037V7DW01 | Panel Type: | CG-Silicon , Panel |
|---|---|---|---|
| Panel Size: | 3.7 Inch | Brightness: | 165 Cd/m² (Typ.) |
| Contrast Ratio: | 200:1 (Typ.)(Transmissive) 2:1 (Typ.)(Reflective) | Display Colors: | 262K (6-bit) , CIE1931 35% |
| Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 51 Pins | Input Voltage: | 3.3V (Typ.)(VSHD) |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
3.7 inch Normally Black LS037V7DW01 with 65*89.2*6.4 mm
| Panel Brand : | SHARP |
| Panel Model : | LS037V7DW01 |
| Panel Type : | CG-Silicon , Panel |
| Panel Size : | 3.7 inch |
| Resolution : | 480(RGB)×640 , VGA |
| Display Mode : | Normally Black, Transflective |
| Active Area : | 56.16×74.88 mm |
| Outline : | 65×89.2×6.4 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 165 cd/m² (Typ.) |
| Contrast Ratio : | 200:1 (Typ.)(Transmissive) 2:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 35% |
| Response Time : | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) |
| Lamp Type : | WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 51 pins |
| Input Voltage : | 3.3V (Typ.)(VSHD) |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
| Panel Size : | 3.7 inch |
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 217 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.039×0.117 mm (H×V) |
| Pixel Pitch : | 0.117×0.117 mm (H×V) |
| Weight : | 48g (Typ.) |
| Surface : | Hard coating (3H) |
| Active Area : | 56.16×74.88 mm (H×V) |
| Bezel Area : | 59.8×78.5 mm (H×V) |
| Outline Dimension : | 65×89.2 mm (H×V) |
| Outline Depth : | 4.4/6.4 (Typ./Max.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
We can do for You:
1. Quality Guarantee:
100% original new and A grade,
You can get the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of LCD panels industry to provide customers with effective advice.
We have been in original LCD panels industry for more than 6 years and know the main brands' LCD panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in LCD panel industry. Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

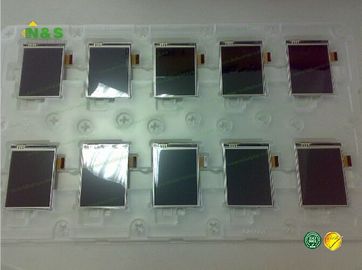

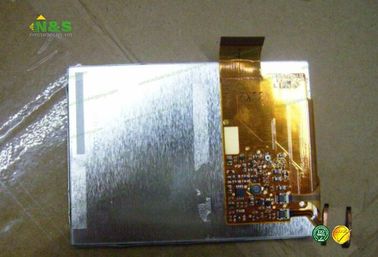

Details Pictures for LS037V7DW01
