Product Details:
|
Panel Type: | CSTN-LCD , Panel | Panel Size: | 6.5 Inch |
---|---|---|---|
Display Mode: | STN, Normally Black, Transmissive | Active Area: | 153.58×57.58 Mm |
Display Colors: | Color | Frequency: | 75Hz |
Response Time: | 270/80 (Typ.)(Tr/Td) | Resolution: | 640(RGB)×240 , HVGA |
High Light: | sharp lcd screen,sharp lcd flat screen |

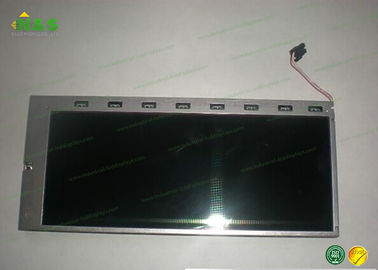

5.5 inch Original and new CSTN-LCD , Panel LM7M632 with 640*240 STN, Normally Black, Transmissive
Trade Terms :
1. Packing: Anti-shaking wooden cabinet /Air flight case/carton
2. Shipping port: Shenzhen. China
3. Shipping freights are quoted according to your requests
4. Delivery time:5-15 working days
5. 3 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period,only charge the material costs fees.
Packaging Details:
Aatic bag, Bubble Bag, Foam Box and Carton Box.ntist
Lead time: 1-3 working days for the sample orders.
General Features
Panel Brand : SHARP
Panel Model : LM7M632
Panel Type : CSTN-LCD , Panel
Panel Size : 6.5 inch
Resolution : 640(RGB)×240 , HVGA
Display Mode : STN, Normally Black, Transmissive
Active Area : 153.58×57.58 mm
Outline : 173×73 mm
Brightness : 150 cd/m² (Typ.)
Contrast Ratio : 30:1 (Typ.)
Display Colors : Color
Response Time : 270/80 (Typ.)(Tr/Td)
Viewing Angle : 30/30/15/25 (Typ.)(CR≥5) (L/R/U/D)
Frequency : 75Hz
Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : Parallel Data (8-bit) , 20 pins
Input Voltage : 3.3V (Typ.)
SHARP LM7M632 Mechanical Features
Panel Size : 6.5 inch
Dot Resolution : 640(RGB)×240 (HVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 105 PPI
Aspect Ratio : 8:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.080×0.240 mm (H×V)
Pixel Pitch : 0.240×0.240 mm (H×V)
Weight : 120g (Typ.)
Active Area : 153.58×57.58 mm (H×V)
Bezel Area : 157.6×61.6 mm (H×V)
Outline Dimension : 173×73 mm (H×V)
Outline Depth : 7.0 (Max.) mm
Landscape or Portrait : Landscape type
Touch Panel : Without
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LK315T3HC1K | SHARP | 31.5" | 1366×768 |
LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
SHARP LM7M632 Optical Features
Display Mode : | STN, Normally Black, Transmissive |
Brightness : | 150 cd/m² (Typ.) |
Contrast Ratio : | 30 : 1 (Typ.) (Transmissive) |
Display Color : | Color () |
Response Time : | 270/80 (Typ.)(Tr/Td) |
Viewing Angle : | 30/30/15/25 (Typ.)(CR≥5) (L/R/U/D) |
White color Chromaticity : | Wx:0.275; Wy:0.320 |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate
Why choose us?
1) Products: All of our panels are 100% original and brand new, grade A+, no fake panels exists. Our products are original from AUO, LG, CMO, CPT, SAMSUNG, TOSHIBA, NEC, Hannstar, Mitsubishi and Sharp factory and so on, enjoy a good reputation among our customers in the past 6 years in our LCD panels international trade.
2) Stock: Mass stock for EOL & Hard-to-find LCD panel models with Competitive price. What is more, small order for LCD display are welcome here. .
3) Warranty: Provide 1 year of warranty, we will replace the defective LCD displays for you if it is of our party’s fault.
4) Various payment Terms: T/T, Western Union, PayPal etc.
5) Quick Delivery: As we have huge stock, orders only takes 1-3 working days after received the payment. And there are various Express supported, we also have competitive freight fee from DHL/UPS/EMS/FedEx/TNT Express companies.
