Product Details:
|
| Panel Size: | 9.4 Inch | Panel Type: | FSTN-LCD , Panel |
|---|---|---|---|
| Brightness: | 65 Cd/m² (Typ.) | Input Voltage: | 5.0V (Typ.) |
| Resolution: | 640×480 , VGA | Display Mode: | STN, Black/White (Negative), Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

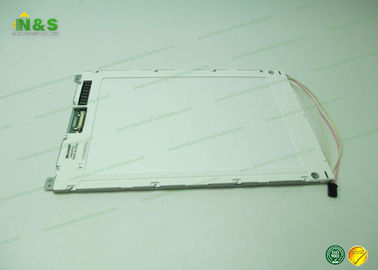

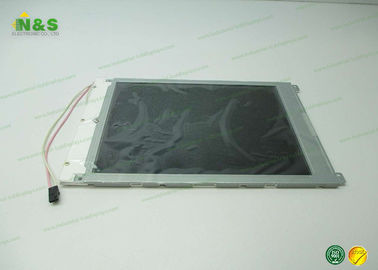

Without touch, Original LM64P83L 640*480 FSTN-LCD , Panel with 9.4 inch
Laptop screen distributor laptop screen:
1. Plenty real stock
2. Professional QC
3. Property packing
4. New A+ grade LCD Panels.
5. One year warranty
6. Wholesale price.
Mechanical Features
| Panel Size : | 9.4 inch |
| Dot Resolution : | 640×480 (VGA) |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.30×0.30 mm (H×V) |
| Pixel Pitch : | 0.30×0.30 mm (H×V) |
| Weight : | 340g |
| Active Area : | 191.97×143.97 mm (H×V) |
| Bezel Area : | 196.0×147.6 mm (H×V) |
| Outline Dimension : | 260×174 mm (H×V) |
| Outline Depth : | 7.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Optical Features
Display Mode : STN, Black/White (Negative), Transmissive
Brightness : 65 cd/m² (Typ.)
Contrast Ratio : 18 : 1 (Typ.) (Transmissive)
Display Color : Monochrome ()
Response Time : 200/150 (Typ.)(Tr/Td)
Viewing Angle : 25/25/20/10 (Typ.)(CR≥4) (L/R/U/D)
General Features

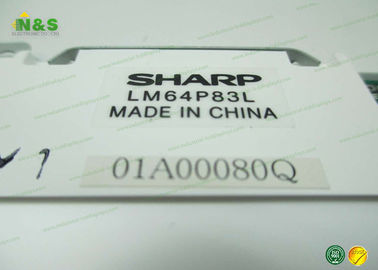

Panel Brand : SHARP
Panel Model : LM64P83L
Panel Type : FSTN-LCD , Panel
Panel Size : 9.4 inch
Resolution : 640×480 , VGA
Display Mode : STN, Black/White (Negative), Transmissive
Active Area : 191.97×143.97 mm
Outline : 260×174 mm
Brightness : 65 cd/m² (Typ.)
Contrast Ratio : 18:1 (Typ.)
Display Colors : Monochrome
Response Time : 200/150 (Typ.)(Tr/Td)
Viewing Angle : 25/25/20/10 (Typ.)(CR≥4) (L/R/U/D)

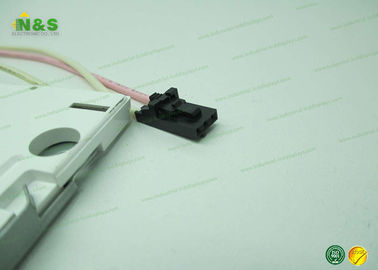

Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : Parallel Data (4-bit) , 15 pins
Input Voltage : 5.0V (Typ.)
About N&S in the LCD Panel area:
We specialize in supplying many brands and variety models of original LCD screen of 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc. With a professional team engaged in purchase, sales, testing and after-sale service. We take quality as our soul and have much EOL & Hard-to-find LCD Screen replacements in stock. LCD products are widely used in laptops, LCD monitor, LCD TV, digital photo frame, the portable DVD products, Industrial control facilities, aerospace equipment, vehicle equipment and so on.
If you need any screen or have any questions, please feel free to contact us.
More details :
| Step1 | Send us inquiry or leave us message online, indicating us following information |
| 1. LCD screen model NO., quantities, and colors you want to order | |
| 2. your name, email and address | |
| 3. the payment and shipment method which are convenient to you | |
| 4. anything else you would like to know | |
| Step 2 | We will get back to you with our best price and the shipping cost very quickly, and answer all your concerned questions in details |
| Step 3 | After order confirmed, you can choose to pay the money by T/T, Paypal, Western and then provide us your delivery address and phone number |
| Step 4 | Sit back and wait patiently. Goods will be shipped out within 3 days, we will send the tracking number to your email once shipped out. |
| Step 5 | After you receive the goods, please let us know if it is in good condition, and your suggestions are welcome. |
