Product Details:
|
| Display Mode: | STN, Black/White (Negative), Transmissive | Panel Size: | 8.5 Inch |
|---|---|---|---|
| Outline: | 257×158.5 Mm | Brightness: | 35 Cd/m² (Typ.) |
| Input Voltage: | 5.0V (Typ.) | Resolution: | 640×480 , VGA |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

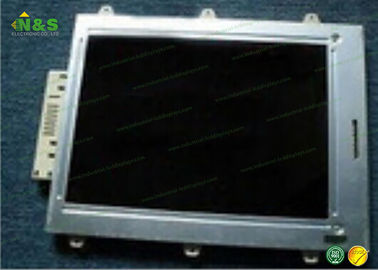

640*480 Sharp LCD Panel LM64P70 for 8.5 inch STN, Black/White, Transmissive
Mechanical Features
| Panel Size : | 8.5 inch |
| Dot Resolution : | 640×480 (VGA) |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.270×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 420g |
| Active Area : | 172.77×129.57 mm (H×V) |
| Bezel Area : | 180.0×133.0 mm (H×V) |
| Outline Dimension : | 257×158.5 mm (H×V) |
| Outline Depth : | 9.5 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Optical Features
| Display Mode : | STN, Black/White (Negative), Transmissive |
| Brightness : | 35 cd/m² (Typ.) |
| Contrast Ratio : | 13 : 1 (Typ.) (Transmissive) |
| Display Color : | Monochrome () |
| Response Time : | 250/150 (Typ.)(Tr/Td) |
| Viewing Angle : | 25/25/10/20 (Typ.)(CR≥4) (L/R/U/D) |
General Features
Panel Brand : SHARP
Panel Model : LM64P70
Panel Type : FSTN-LCD , Panel
Panel Size : 8.5 inch
Resolution : 640×480 , VGA
Display Mode : STN, Black/White (Negative), Transmissive
Active Area : 172.77×129.57 mm
Outline : 257×158.5 mm
Brightness : 35 cd/m² (Typ.)
Contrast Ratio : 13:1 (Typ.)
Display Colors : Monochrome
Response Time : 250/150 (Typ.)(Tr/Td)
Viewing Angle : 25/25/10/20 (Typ.)(CR≥4) (L/R/U/D)
Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : Parallel Data (4-bit) , 14 pins
Input Voltage : 5.0V (Typ.)
About N&S in the LCD Panel area:
We specialize in supplying many brands and variety models of original LCD screen of 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc. With a professional team engaged in purchase, sales, testing and after-sale service. We take quality as our soul and have much EOL & Hard-to-find LCD Screen replacements in stock. LCD products are widely used in laptops, LCD monitor, LCD TV, digital photo frame, the portable DVD products, Industrial control facilities, aerospace equipment, vehicle equipment and so on.
If you need any screen or have any questions, please feel free to contact us.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
