Product Details:
|
| Resolution: | 640(RGB)×480 , VGA | Panel Size: | 8.0 Inch |
|---|---|---|---|
| Display Colors: | Color | Contrast Ratio: | 4:3 (H:V) |
| Weight: | 280g | Pixel Density: | 99 PPI |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

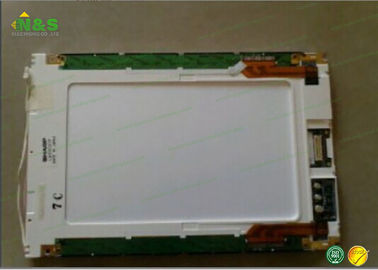

640*480 Sharp LCD Panel LM64C21P for 8.0 inch without touch STN, Normally Black, Transmissive
Our services:
1.We thought that every customer is our family member.
2. Best service with help is needed, if you have any problem, the first one you thought for help must be our team
3. Try our best to meet our customers’ requirements.
4. 24 hours online.
5. Check the item one by one before packing.
6. Delivery the product within our promise time.
7. Follow the order all the time, till you sell them successfully without any problem.
8. Solve all the problems after we got complaints from dear customers, no excuse! Because your problem, is ours.
9. Technical support. We have being already made these LCD Screen Panels for about 6 years in the international trade. Our product contained but not limited to Medical LCD display, Aerospace LCD screen, Gaming LCD Panels, Military LCD panels, Kiosk LCD display, Transportation LCD panels, Industrial LCD panels and more.
General Features
Panel Brand : SHARP
Panel Model : LM64C21P
Panel Type : CSTN-LCD , Panel
Panel Size : 8.0 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : STN, Normally Black, Transmissive
Active Area : 163.175×122.375 mm
Outline : 216×152.4 mm
Display Colors : Color
Lamp Type : CCFL Without Driver
Signal Interface : Parallel Data (8-bit) , 31 pins
Input Voltage : 5.0V (Typ.)
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Mechanical Features
| Panel Size : | 8.0 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 99 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.085×0.255 mm (H×V) |
| Pixel Pitch : | 0.255×0.255 mm (H×V) |
| Weight : | 280g |
| Active Area : | 163.175×122.375 mm (H×V) |
| Outline Dimension : | 216×152.4 mm (H×V) |
| Outline Depth : | 8.0 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
More details:
Signal Category : Parallel Data
Signal Class : Parallel Data (8-bit)
Input Voltage for Panel : 5.0V (Typ.)
Input Current for Panel : 110/170mA (Typ./Max.)
Panel Power Consumption : 500/850mW (Typ./Max.)
Interface Type : Connector
8.0", 640×480, Parallel Data, 2D, CCFL, Flat, Panel Hot Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| LM-DA53-21NFW | 8.0" | Panel | 640×480 | CCFL | Color | ||
| LM64C21P | 8.0" | Panel | 640×480 | CCFL | Color | ||
| LM64P12 | 8.0" | Panel | 640×480 | 80 | 18:01 | CCFL | Monochrome |
| LM64P121 | 8.0" | Panel | 640×480 | CCFL | Monochrome | ||
| LM64P122 | 8.0" | Panel | 640×480 | 80 | 18:01 | CCFL | Monochrome |
| LM64C219 | 8.0" | Panel | 640×480 | CCFL | Color | ||
| LM-DA53-22NAW | 8.0" | Panel | 640×480 | 65 | 30:01:00 | CCFL | Color |
| LM-DA53-22NTW | 8.0" | Panel | 640×480 | 65 | 30:01:00 | CCFL | Color |
