Product Details:
|
| Resolution: | 640(RGB)×480 (VGA) | Display Mode: | CSTN-LCD , Panel |
|---|---|---|---|
| Panel Size: | 9.4 Inch | Display Colors: | Color |
| Pixel Configuration: | RGB Vertical Stripe | Contrast Ratio: | 4:3 (H:V) |
| Interface Type: | Connector | Pixel Density: | 84 PPI |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

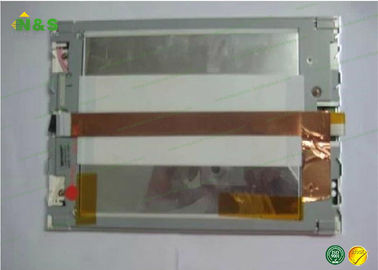

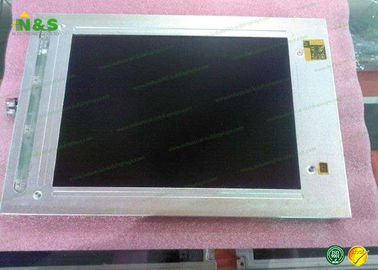

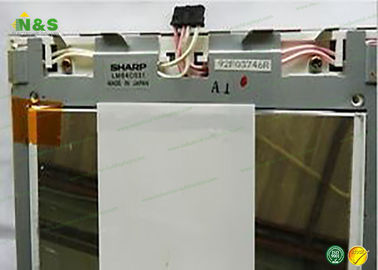

9.4 inch Sharp LCD Panel LM64C031 color lcd display module with 640*480 Flat Rectangle Display
We still have other LCD panel models and more in stock:
Sizes: 7.0, 8.9", 9.7", 10.0", 10.1", 10.2", 10.4", 11.1", 11.6", 12.1", 12.5", 13.1", 13.3", 14.0", 14.1", 14.5", 15.0" 15.4", 15.6", 16.0", 16.4", 17.0", 17.1", 17.3", 18.4"
Resolutions: XGA, WXGA, WXGA HD, , WXGA+, WXGA++, WSVGA, WUXGA, WUXGA+, WUXGA++, Full-HD
Backlight technologies: LED, SLIM LED, 1 CCFL, 2 CCFL
Brands: NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE and more.
Our services:
1.We thought that every customer is our family member.
2. Best service with help is needed, if you have any problem, the first one you thought for help must be our team
3. Try our best to meet our customers’ requirements.
4. 24 hours online.
5. Check the item one by one before packing.
6. Delivery the product within our promise time.
7. Follow the order all the time, till you sell them successfully without any problem.
8. Solve all the problems after we got complaints from dear customers, no excuse! Because your problem, is ours.
9. Technical support. We have being already made these LCD Screen Panels for about 6 years in the international trade. Our product contained but not limited to Medical LCD display, Aerospace LCD screen, Gaming LCD Panels, Military LCD panels, Kiosk LCD display, Transportation LCD panels, Industrial LCD panels and more.
General Features
Panel Brand : SHARP
Panel Model : LM64C031
Panel Type : CSTN-LCD , Panel
Panel Size : 9.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : STN, Normally Black
Active Area : 191.975×143.975 mm
Display Colors : Color
Lamp Type : CCFL Without Driver
Signal Interface : Parallel Data (8-bit) , 18 pins
Mechanical Features
| Panel Size : | 9.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.10×0.30 mm (H×V) |
| Pixel Pitch : | 0.30×0.30 mm (H×V) |
| Active Area : | 191.975×143.975 mm (H×V) |
| Landscape or Portrait : | Landscape type |
9.4", 640×480, Parallel Data, 2D, CCFL, Flat, Panel Hot Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| LM64P30 | 9.4" | Panel | 640×480 | CCFL | Monochrome | ||
| LM64P83L | 9.4" | Panel | 640×480 | 65 | 18:01 | CCFL | Monochrome |
| LM641836 | 9.4" | Panel | 640×480 | CCFL | Monochrome | ||
| LM64P839 | 9.4" | Panel | 640×480 | 65 | 18:01 | CCFL | Monochrome |
| LM64183PR | 9.4" | Panel | 640×480 | CCFL | Monochrome | ||
| LM64183P | 9.4" | Panel | 640×480 | 70 | 11:01 | CCFL | Monochrome |
| LM64P30R | 9.4" | Panel | 640×480 | CCFL | Monochrome | ||
| DMF50260NF-FW | 9.4" | Panel | 640×480 | 14:01 | CCFL | Monochrome | |
| LM64P83 | 9.4" | Panel | 640×480 | CCFL | Monochrome | ||
| LM64K837 | 9.4" | Panel | 640×480 | 45 | 10:01 | CCFL | Monochrome |
Questions & Answers:
Q1: How can you trust us?
- We are a professional team for the LCD panel international trade already for 6 years. We own the more professional & more competitive sourcing line & agency for the LCD Screen panels.
Q2: When can I get the update price?
- Within 24 hours after we get your inquiry.
Q3: What is your product capacity per day?
- 500-1000 pcs/day. We test each pcs LCD panels before shipment.
Q4: What is the payment term?
- T/T, Western Union, MoneyGram, PayPal.
Q6: Do you offer after-sale service?
- Yes, we do. We have strict QC system to make sure within our guarantee period(12 months), please contact us ASAP if there is any question, we will try our best to resolve it.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
